“We do it differently. We set out to design the best gravel and suspension mountain bikes in the world, by designing and patenting our own Fourby4 suspension platforms, creating our own tools/parts and then partnering with premium fabricators from around the world. We deliver the highest quality bike frames available, worldwide.” – Knolly Bikes
“The Knolly crew have been riding for a long time. In fact, some of us started riding when mountain bikes were just a twinkle in the founder’s eye (we won’t get into the argument over who it was – we don’t care – but a huge thanks to those who started this crazy ride). Through our riding and personal careers, one thing has always been constant, we are happiest when we are on two wheels. So with an entire lineup of new full suspension models designed and heading into the production phase, we focused on a new type of Knolly, one that we wanted to build just for the hell of it (and a sign of things to come).
“OK, let’s be honest, we wanted to add a bike to our personal quiver. But that’s the best part of being a bike company, isn’t it? We build cool stuff and ride it. And when we have something new to bring to market, we get excited!”
A Different Angle

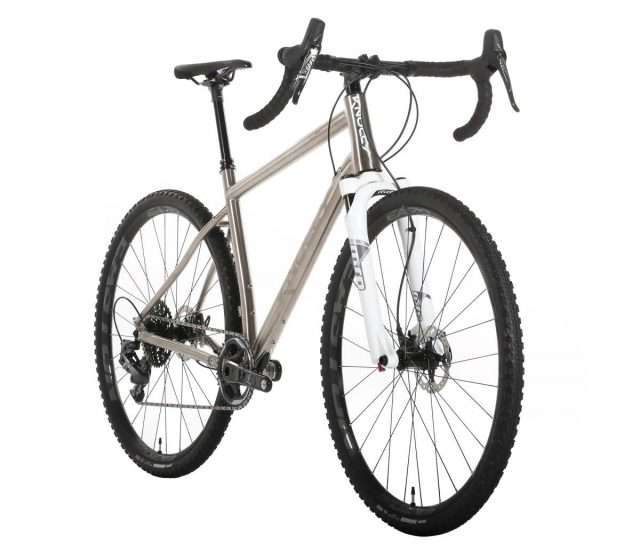

“Knolly CEO and Head Engineer, Noel Buckley, wanted a gravel bike that would deliver a ride experience similar to our mountain bikes. He wanted a bike that could go harder and farther, while also immediately feeling “right”, with minimum adaption time. To differentiate our Cache from the cattle, Noel custom designed a titanium bike with a longer front center (like our off-road products), which when combined with a shorter stem gives the bike amazing handling characteristics.”
Materials

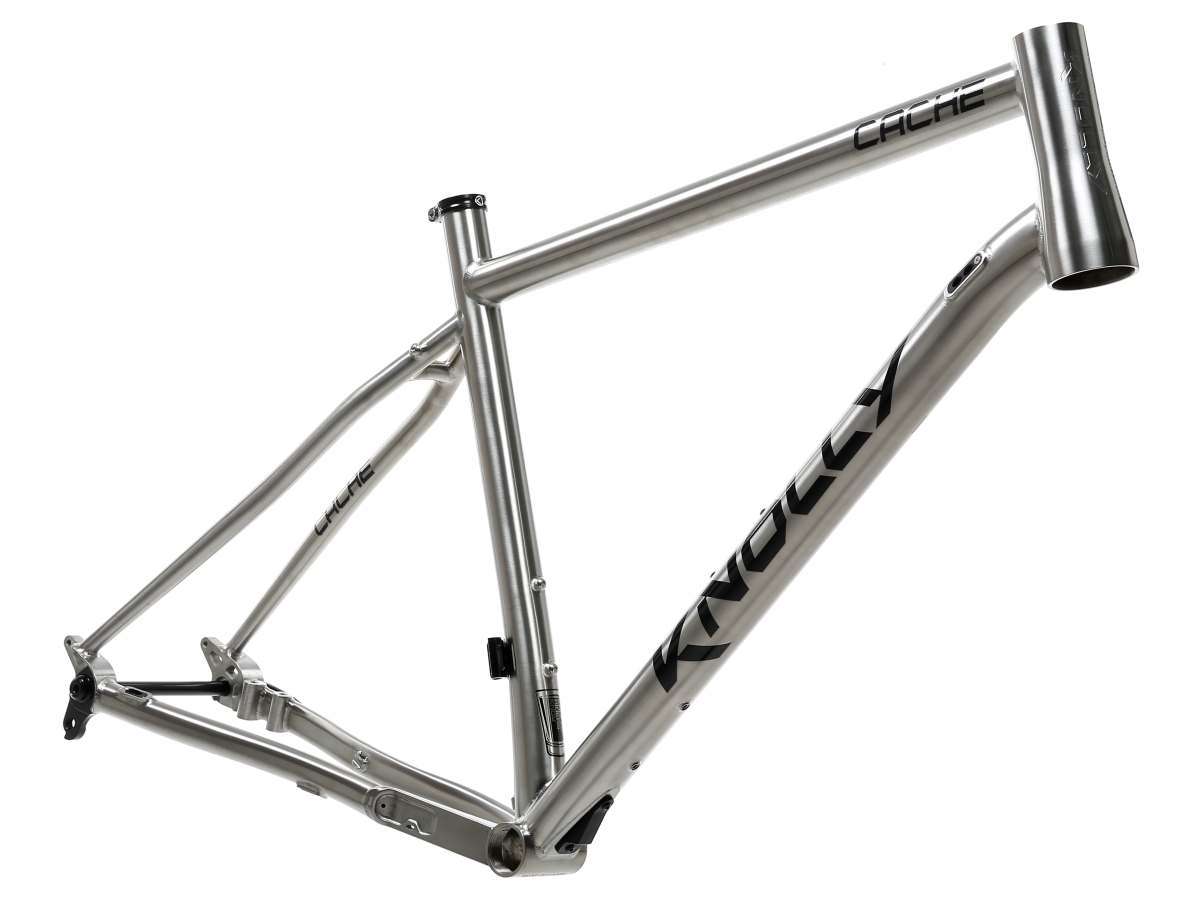

“To start, Noel looked at frame material options and chose titanium (Ti) because it would deliver the best overall performance and comfort for gravel riders. But off the shelf Ti tubing would not provide the ride experience Noel was looking for so we built the Cache with custom tubes and pushed the boundaries of manipulating Ti. Yes, it was more costly and labor intensive, but it delivered the precise ride performance that we desired.”
Knolly Carbon Fork & Front Suspension
“With the Cache built for versatility, we wanted to offer a few options for forks.”

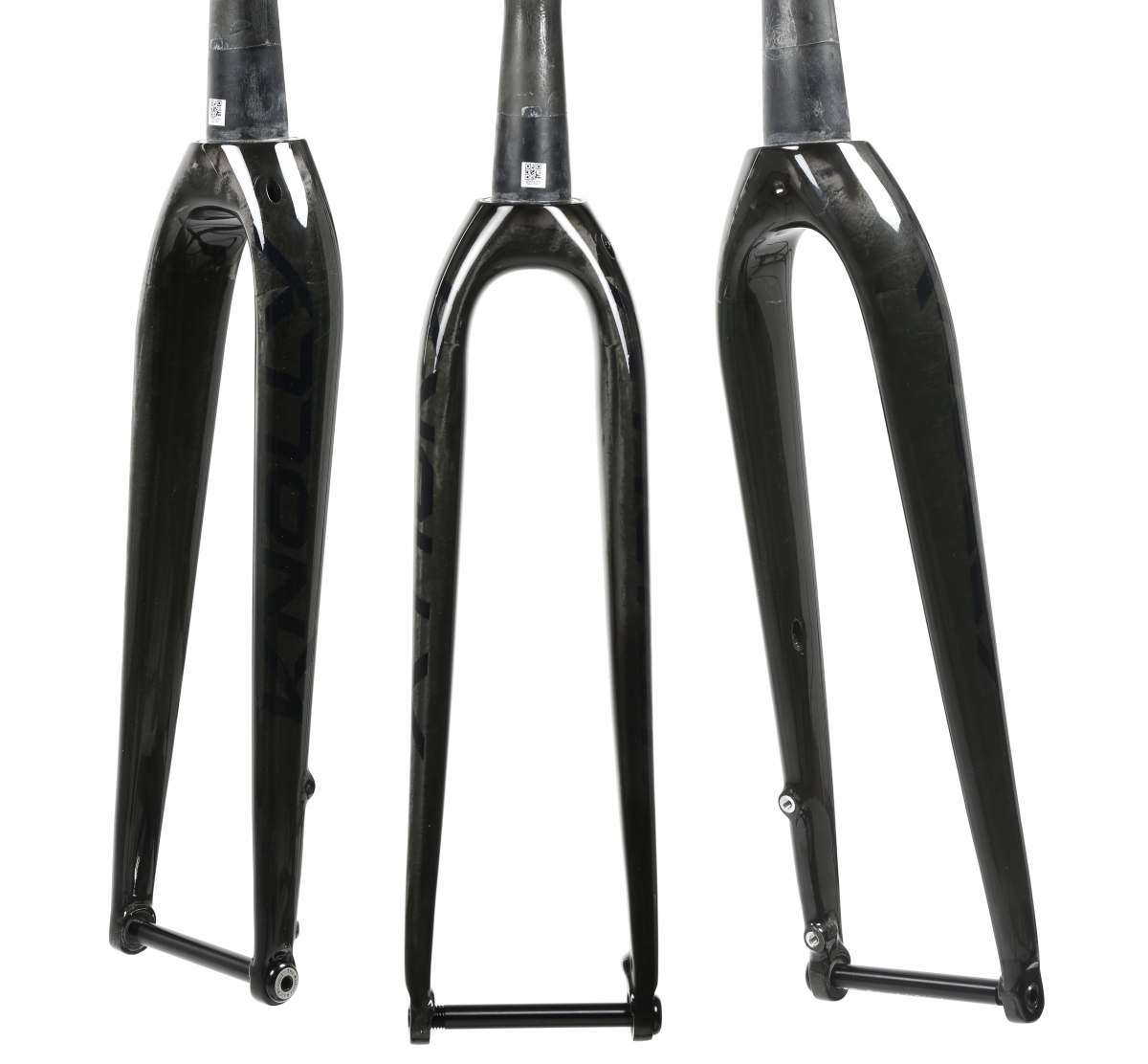

“Our new fully carbon gravel fork is a clean straight blade fork designed specifically for multi-surface and gravel riding and is exceptionally lightweight but strong (465g including axle). Featuring a DT Swiss RWS 12mm thru-axle and flat mount brake standard, it is a one-piece steerer / crown / leg assembly made with high-quality Toray UD fibers. The Cache carbon fork uses a rigid upper crown section for steering accuracy combined with a tapered and tuned lower leg. This fork matched with the Cache Titanium frame provides a compliant ride with extremely precise handling. Other fork features include hidden fender mounts, piped internal brake routing and there is ample clearance for 700c x 45mm and 27.5 x 2.1” tires (with fenders).”
“For mixed technical terrain, when you know your wrists and shoulders are taxed, we offer two 40mm fork options: the FOX 32 Step cast AX and the MRP Baxter Adventure fork.”
Geometry
“When it came to geometry, Knolly didn’t follow gravel bike trends and simply create a ride that was essentially a road or CX bike with burlier tires. Instead, we utilized our mountain bike expertise and formulated a geometry with a longer wheelbase for optimal stability at high speeds and increased comfort on longer rides. Our design features a compact rear triangular, with a shorter chainstay for ideal pedaling efficiency while offering plenty of tire and fender clearance when the weather gets nasty. The sloping top tube and shorter stem allow for more aggressive steering and incredible control, while the curved offset seat tube ensures vertical compliance, yet provides a stiff BB for efficient power transfer when cranking out the miles.”
Giving You All The Options

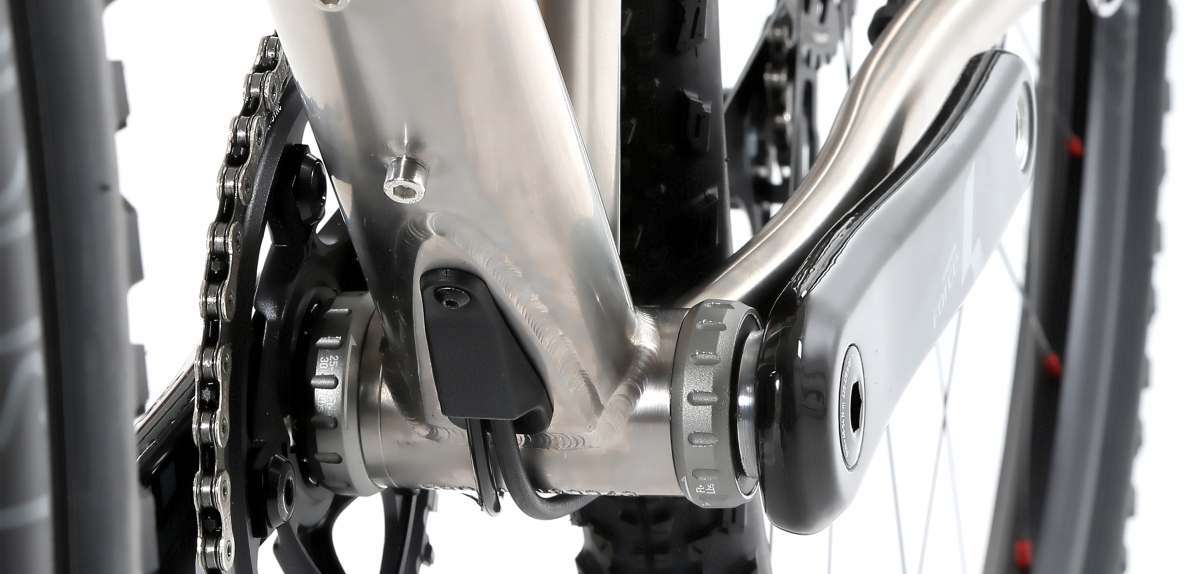

“The Cache hits the bar high with a load of intuitive details. It has a threaded BB shell, custom right side chainstay yoke, full fender mounts, and an industry first frame design that connects the down tube to the highly manipulated seat tube so that you can run an internal dropper post.”

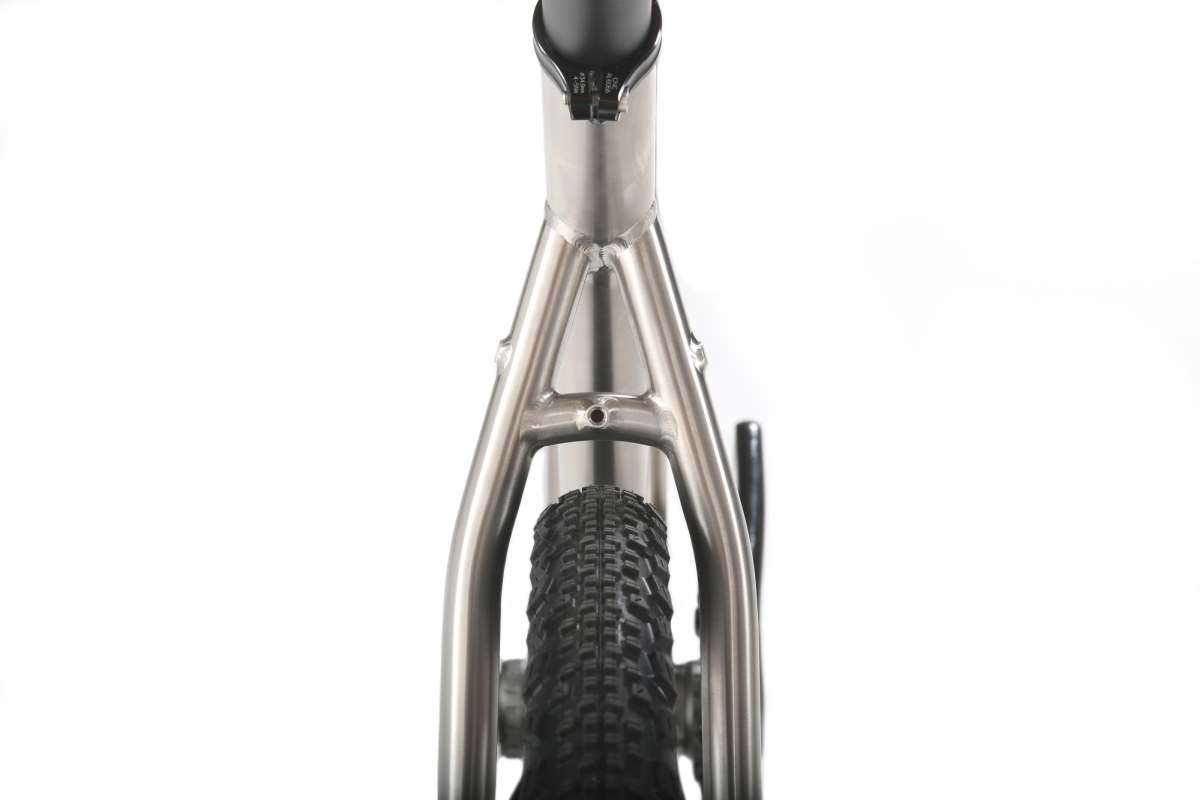

“Every tube on the CACHE is custom including the seat stays. With lots of clearance in the rear triangle for 700x45c tires or 27.5” x 2.1 tires, they still leave room for full fenders. Backward or down facing eyelets might be clean looking but it makes them a pain to use. We prefer to keep them easily accessible.”
“The custom chain stays on the Cache are full of subtle features like a trapezoidal cross section whose top surface is angled slightly outwards to improve the cable exit angle. The Cache also utilizes our durable mountain bike derailleur hanger so it’s compatible with the Knolly already in your shed.”
“Most cable ports are off the shelf solutions, but that didn’t work for us. So we designed our own cable ports. This comes straight from our mountain bike designs and benefits the Cache as it compresses a rubber wedge so that the cables are under tension and do not rattle. It also provides the opening to route the dropper post cable.”

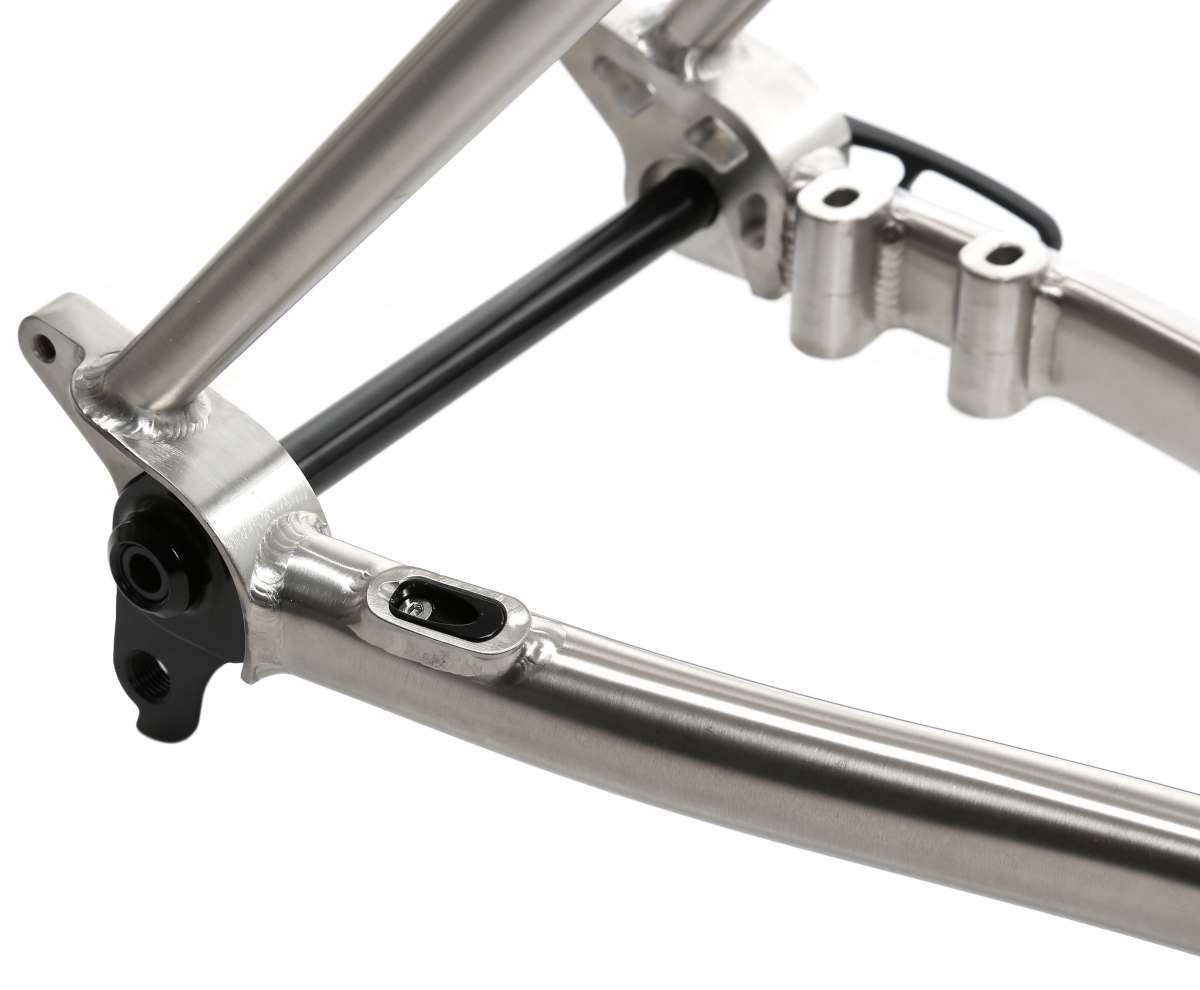

“Our custom CNC’d dropouts combine the stiffness of the chainstay to the legendary flex of titanium in the seatstay. The offset seat stay tube position on the dropout hood also helps the frame absorb vibration before it gets to the rider.”

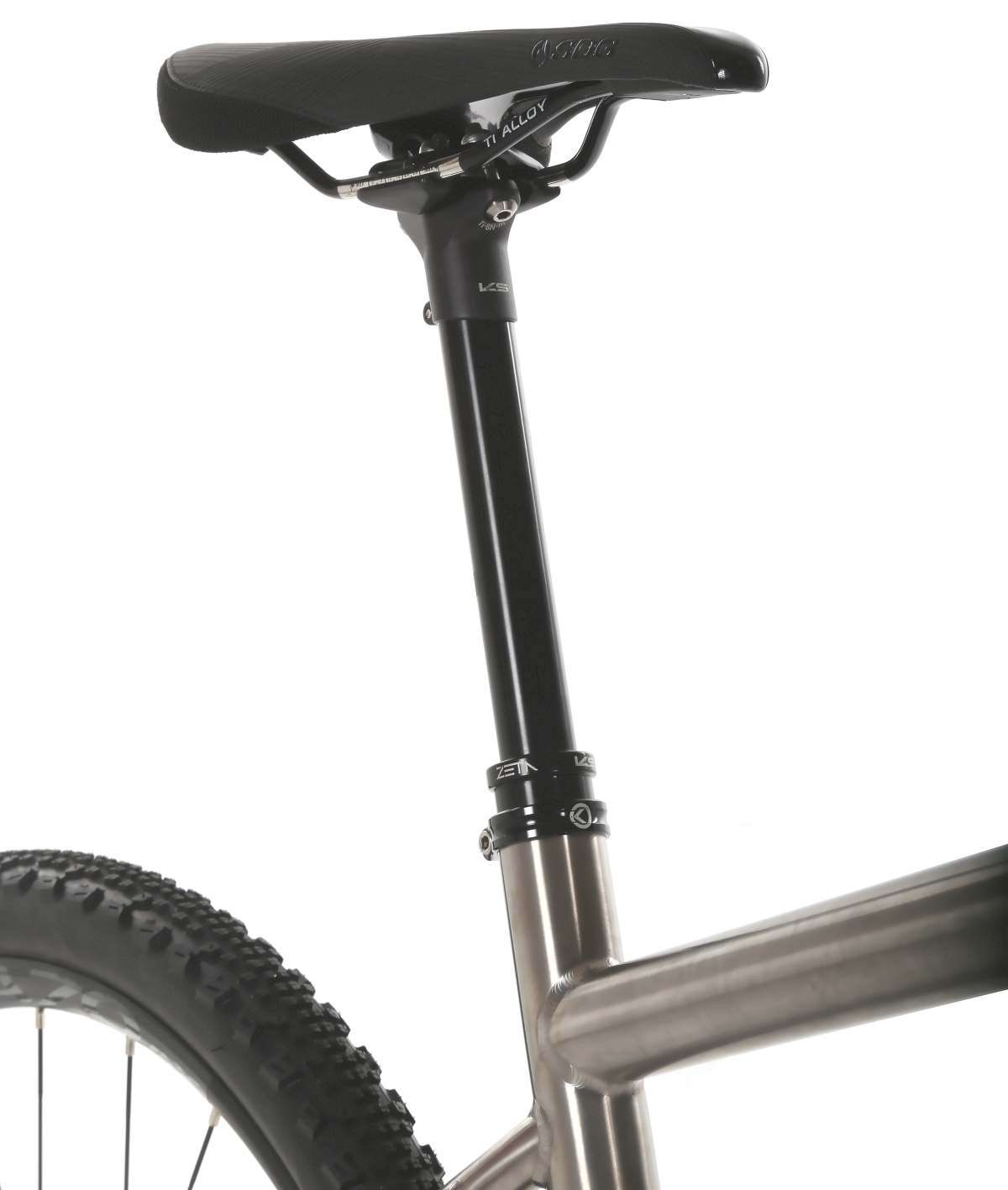

“It’s dropper post compatible. Look, we know 90% of our riders won’t run a dropper post on this frame, but isn’t it rad that you can. If this is your style, our 31.6 seat tube gives you plenty of options.”
“Internal and external cable routing has been designed into the Cache frame. The internal cable routing allows the housing to be run quickly and each end cap is designed to properly hold all the standard size housing including Di2.”
“In addition, the Cache can support Di2, is 2x or 1x compatible, has multiple tire options (700 OR 27.5 wheels), supports 3 water bottle mounts and includes rear fender and rack mounts for varied conditions.”
“The Cache started as a passion project by a group of dedicated riders and evolved to become a revolutionary gravel bike that offers the optimal mix of innovative features while delivering the compliance, comfort, and performance needed for your next gravel adventure.”
“The Cache is available in seven frame sizes and can be purchased as a frame only, frame and fork, or complete bike with multiple build kit options. We will also have our carbon fork for sale separately.”
