“AM64 represents J.Laverack’s high-performance and innovative titanium frame design, pairing additive manufacturing (3D printing) and double-butted titanium tubes to create a smooth, clean aesthetic, complemented by fully internal cable routing.” – J.Laverack
“The head tube, bottom bracket, seat-lug and dropouts are additively manufactured and designed parametrically. The engineering advancement is available on bikes with fully bespoke geometry as well as standard size frames between 44cm and 64cm, and maintains smooth intersections between 3D printed components and tubes.”

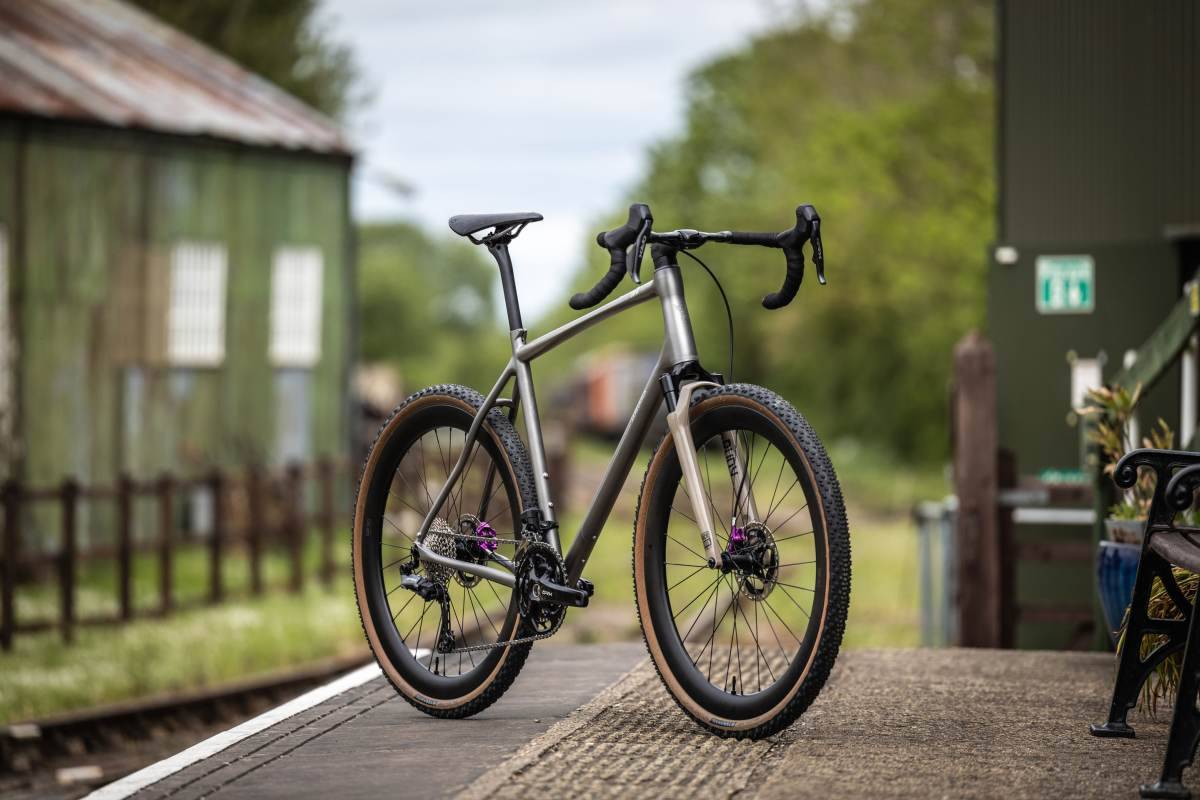

“Enhancing J.Laverack’s range of award-winning frame geometries, AM64 technology is now available on all models, ranging from road and gravel bikes to mountain bikes and urban bikes.”

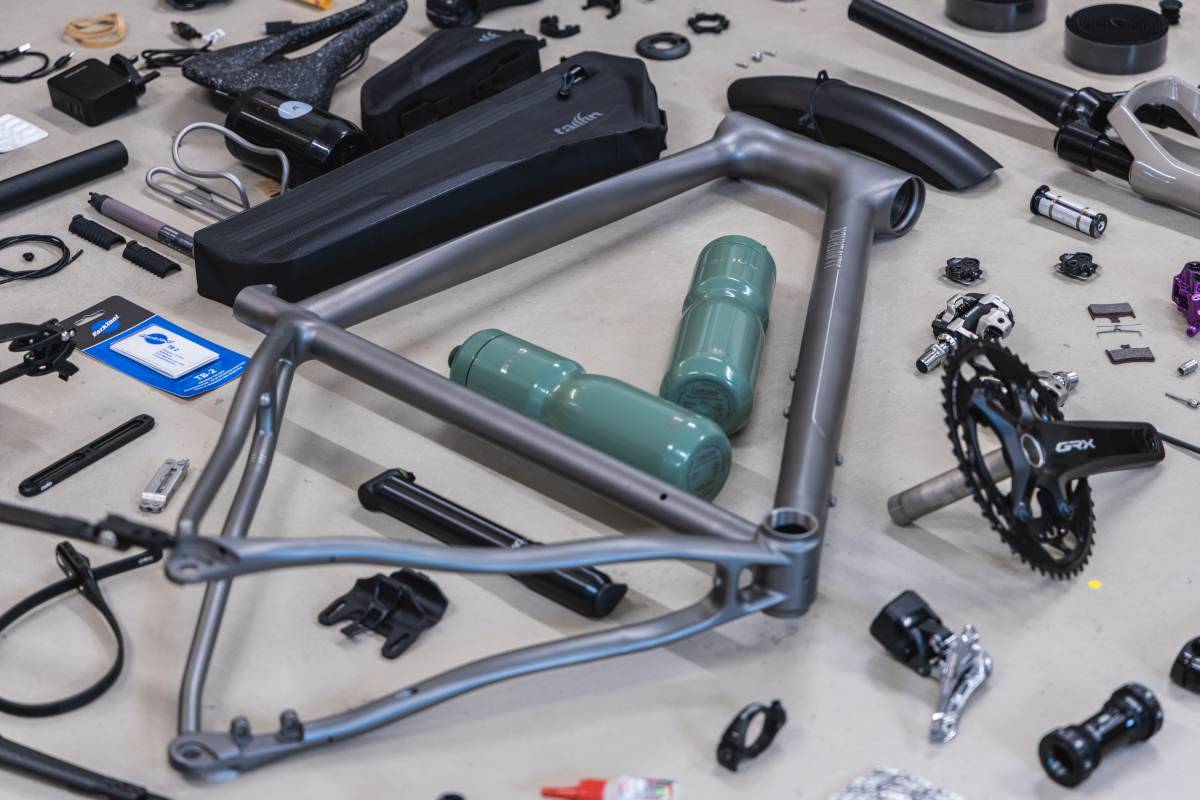

“Developed thanks to J.Laverack’s advancements in additive manufacturing (also known as 3D printing), the bespoke British bicycle design and manufacturing company now offers a titanium frame that combines cutting-edge parametrically designed, additive manufactured titanium parts with double-butted titanium tubes. The result is a beautifully styled and technologically advanced frame with smooth transitions between printed parts and intersecting tubes. A timeless blend of classic and cutting edge manufacturing methods combine to create a high-performance bicycle with the looks to match.”
“All models in the J.Laverack range are available with AM64 which denotes both ‘Additive Manufacturing’ and the grade of titanium alloy used; Ti-6Al-4V. This exceptionally special material features a high strength to weight ratio that makes it one of the world’s super metals.”
“When we created the J.Laverack Aston Martin .1R we pushed bicycle design and technology to the limit of what is possible. Over the four years it took us to develop the .1R we learned a great deal, and this is our first opportunity to apply some of that technology to our-award winning range of J.Laverack frames,” says Oliver Laverack, Co-founder.
AM64 Frame Details

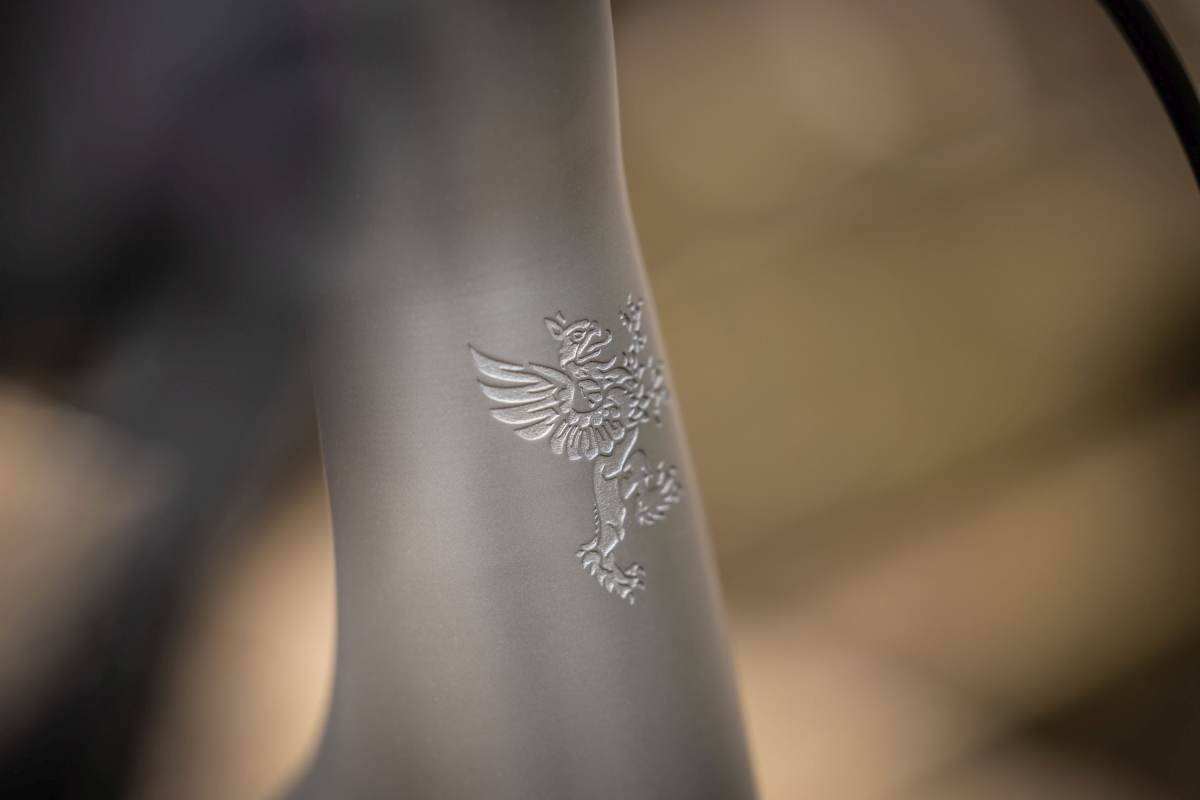

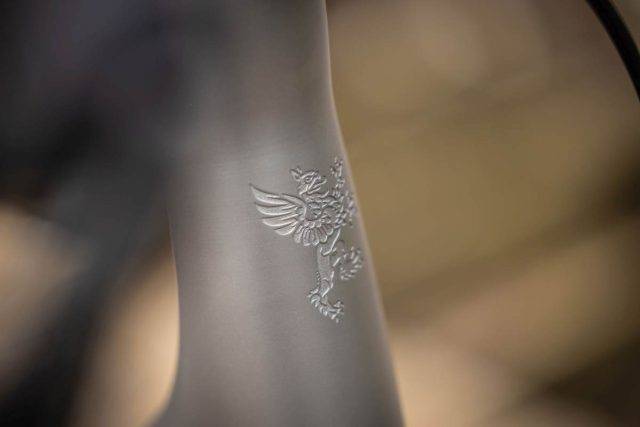

“The new flowing and contoured headtube features an engraved gryphon. There are no visible welds where the tubes join; instead, the headtube flows freely into the downtube and top tube.”

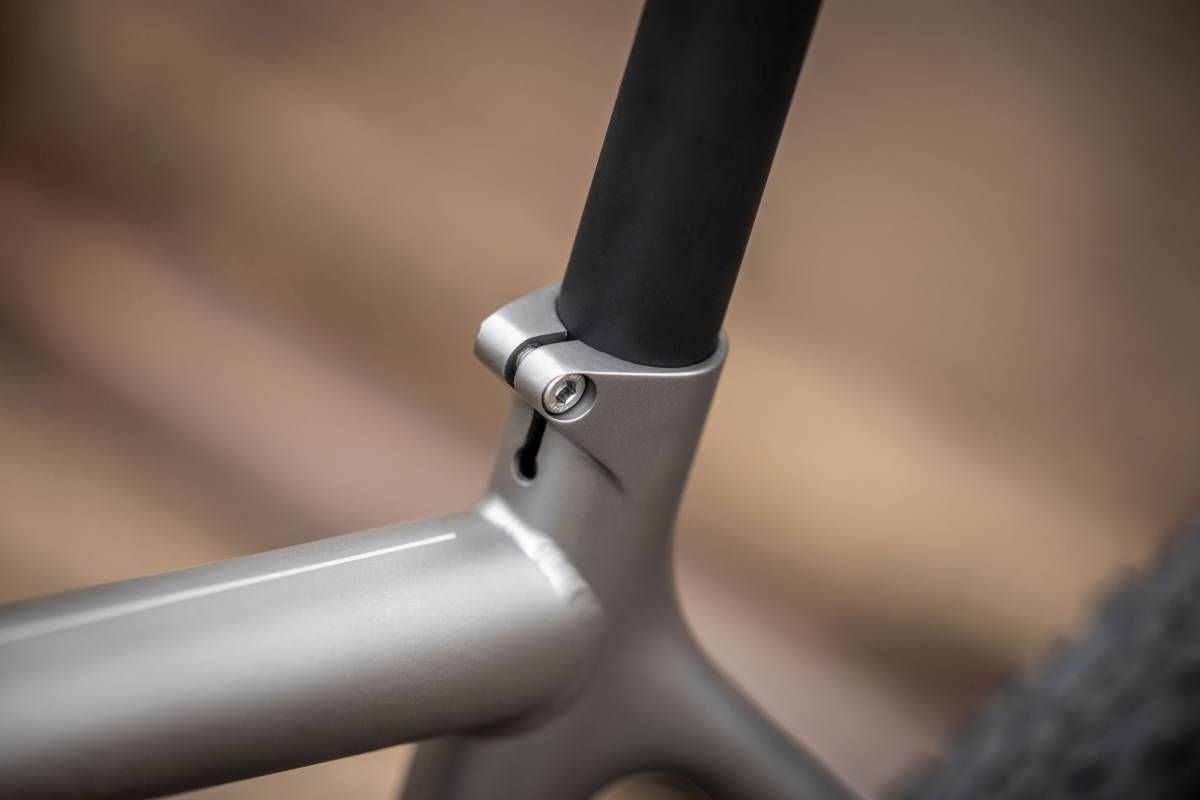

“A light-weight integrated seat clamp offers a simple yet innovative clamping solution that results in a beautifully clean aesthetic, allowing for an almost uninterrupted line through to the top of the seat post.”

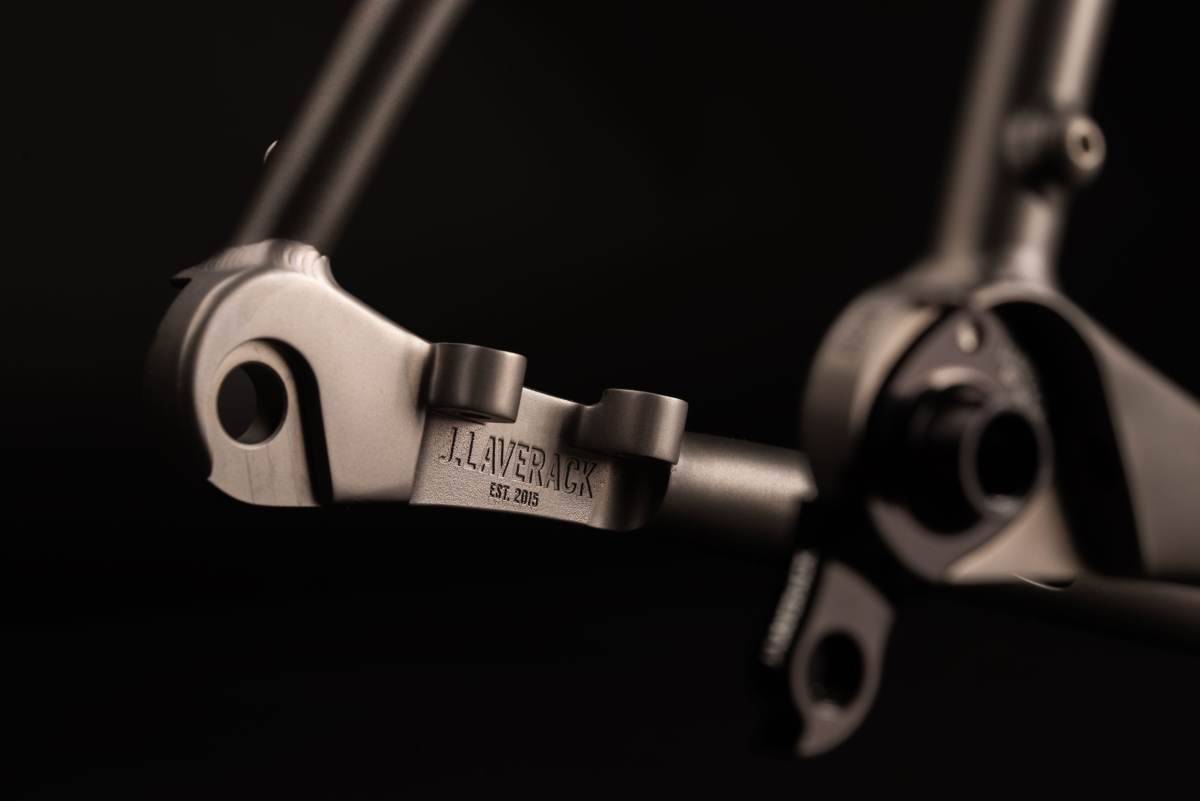

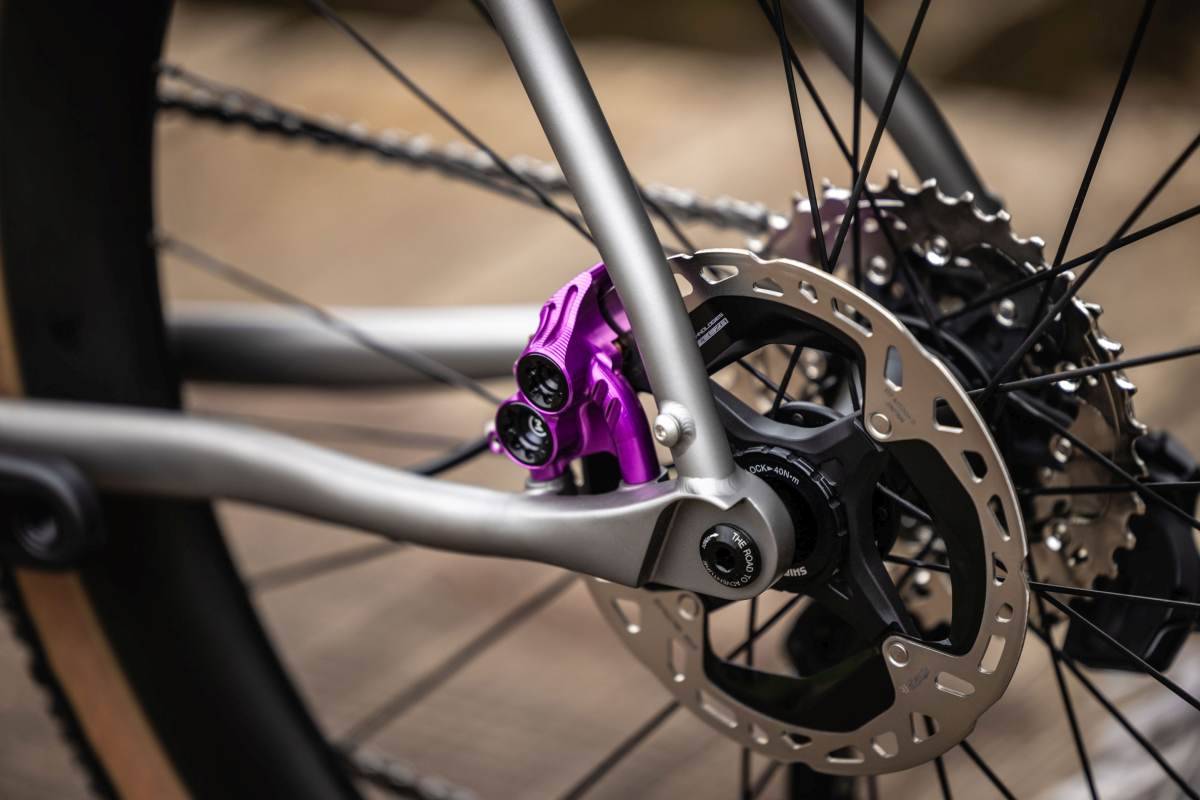

“Curvaceous dropouts intersect smoothly with the chainstays which feature engraved details including the model name on the drive side dropout and a hidden detail on the inside of the rear brake mount.”

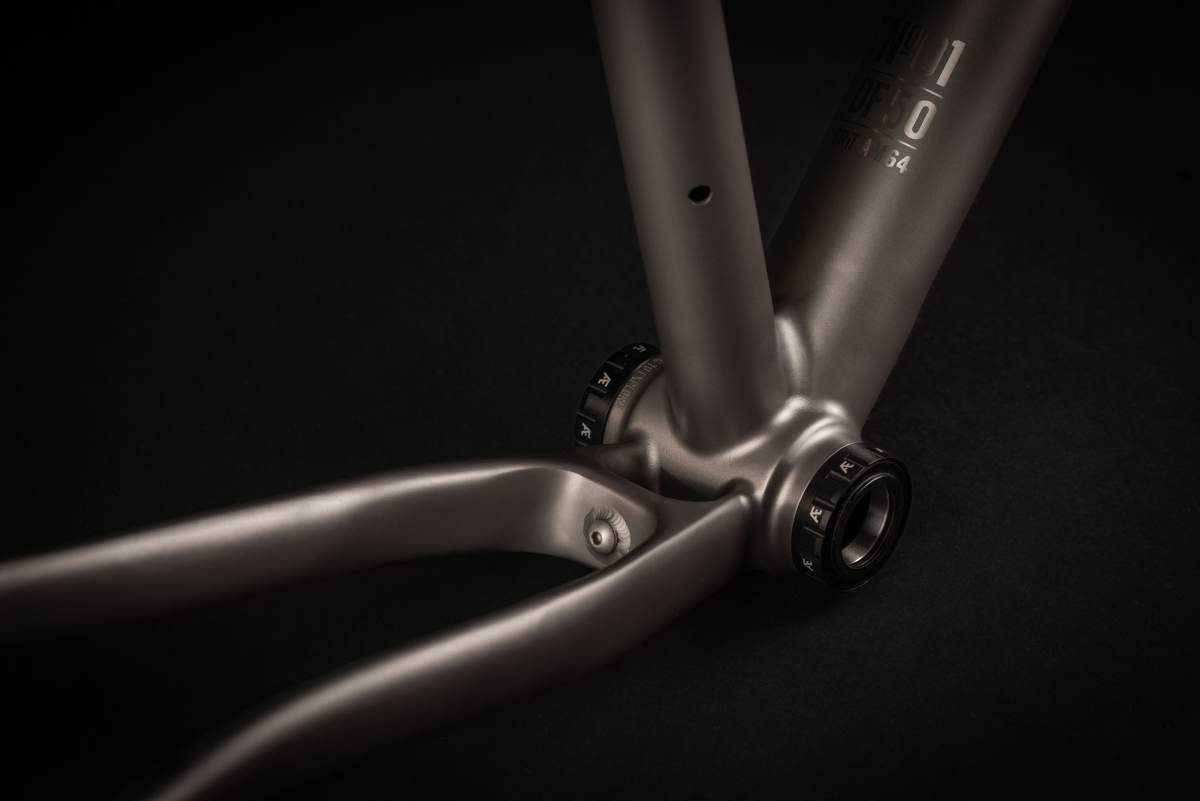

“J.Laverack’s elegant Streamline BSA threaded bottom bracket design has evolved to take advantage of additive manufacturing. This allows for the chainstay bridge to become part of the bottom bracket. Every AM64 frame includes the UK made ÆRA No.1 bottom bracket, which was designed specifically to complement the Streamline BSA design.”
“A more discrete set of graphics lets the frame do all the talking with small details that embellish the frame where we feel they add something special such as the ‘shutter diamond’ on the seat tube.”

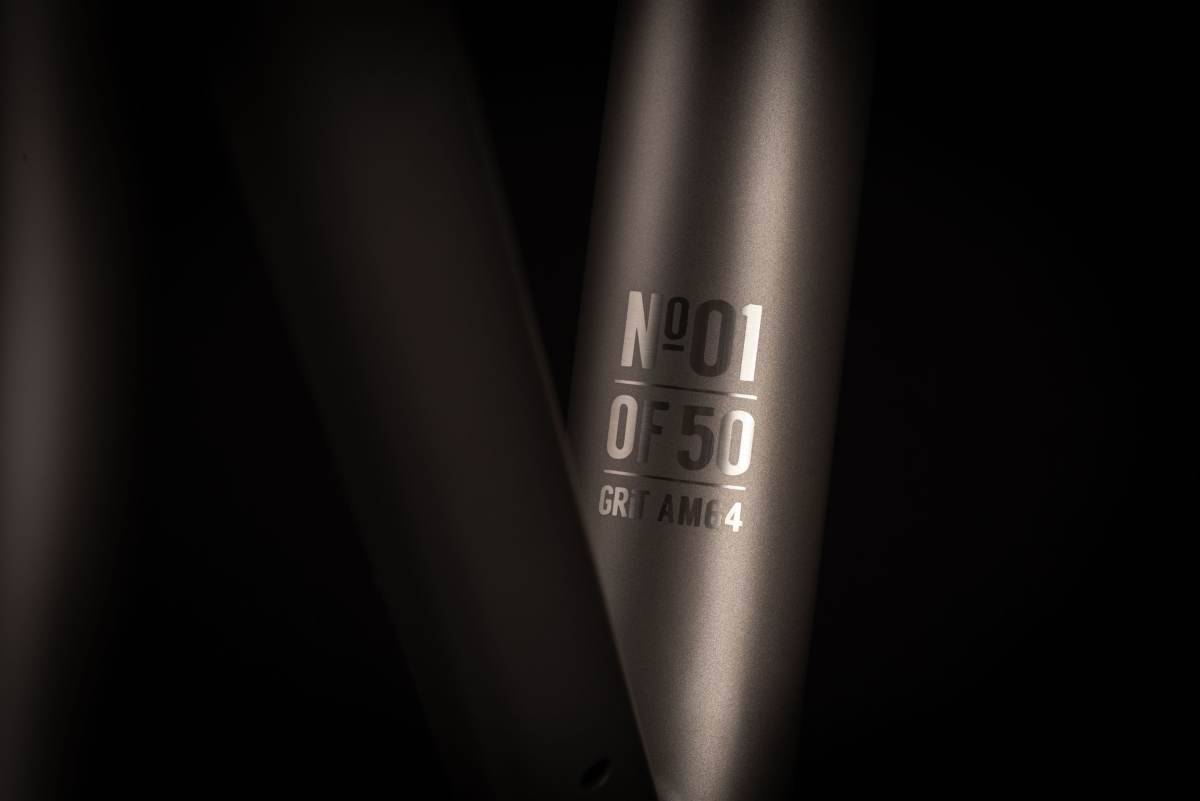

“The first 50 commemorative frames of each model – J.ACK, GRiT, R J.ACK, CONTOUR and PiLOT will be numbered. The hand-brushed, bead-blasted or painted commemorative graphic is located on the lower part of the down tube so the rider can see it while pedaling.”
Pricing
- Complete build pricing, starting from £9,745, €11,495, $12,475 for GRX or Ultegra Di2 with ÆRA carbon wheels.
- Bike fit and bespoke geometry £495, €585, $630.
- R J.ACK AM64 – Road
- J.ACK AM64 – Road / All Road
- GRiT AM64 – Gravel
- PiLOT AM64 – Urban / Road
Complete build includes:
- AM64 frame, ENVE carbon fork, stem, handlebar and headset, ÆRA seatpost, ÆRA Streamline No.1 bottom bracket, Brooks C13 saddle.
- 12-speed Shimano Ultegra or GRX Di2 groupset.
- ÆRA carbon rims with ÆRA No.5 hubs, built in-house with 28 Sapim CX-Ray spokes and choice of tyres.
- 12mm thru axles, 2 x rear derailleur hanger, commemorative frame number 1 to 50.
- Frameset price £6995, €8,265, $8,950.
- Bike fit and bespoke geometry £495, €585, $630.
Frameset includes:
- AM64 frame, ENVE carbon fork, stem, handlebar and headset, ÆRA seatpost, ÆRA Streamline No.1 bottom bracket.
- 12mm thru axles, 2 x rear derailleur hanger, commemorative frame number 1 to 50.
