“The Bossi Grit completely overhauls our best-selling gravel platform with plentiful frameset improvements, expanded drivetrain and build options, all with reduced weight. It’s our most flexible and adaptable frame to date, unapologetically gravel and ready for your dream build.” – Bossi Bicycles
New Bossi Grit at a glance:
- 3AL-2.5V titanium tubing with 6AL-4V bottom bracket and head tube, and 3D printed 6AL-4V dropouts.
- Bottom bracket, dropout, and tube upgrades shave ~150 g frame weight from previous generation Grit SX.
- The new hybrid tapered head tube is compatible with any headset using ZS 44 mm upper and 1.5″ lower bearing.
- New rear dropouts support Universal Derailleur Hanger (UDH) and SRAM T-Type Transmission.

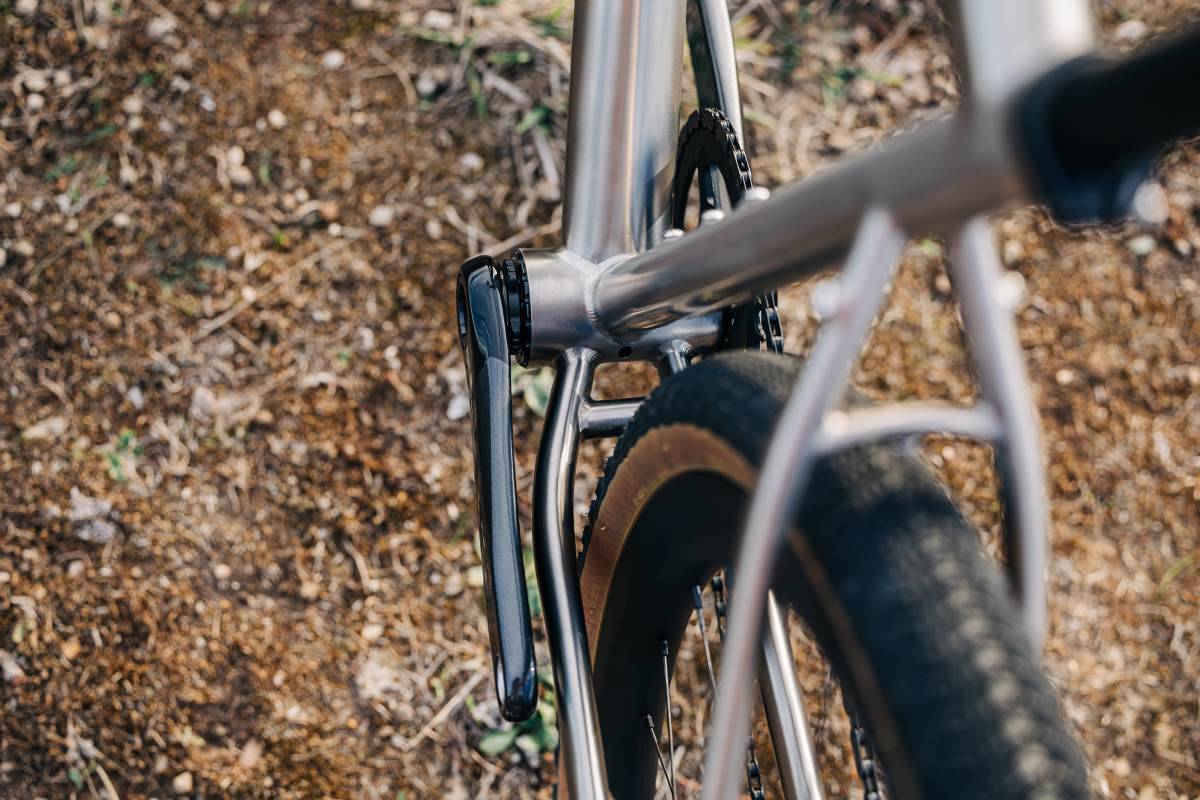

- T47 86mm bottom bracket.
- Clearance for 50c(700c) and 2.2″(650b) tyres.

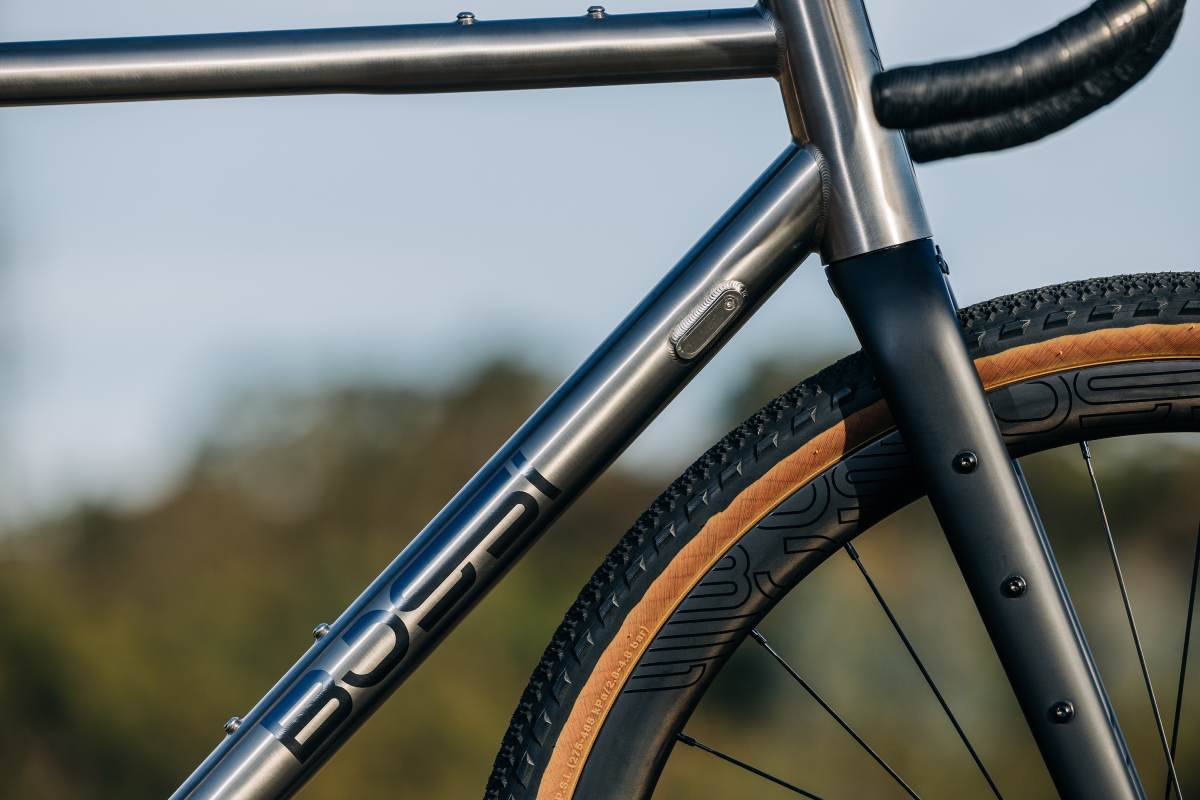

- Re-designed cable entry ports simplify shifter and brake hose routing.
- Carbon fork featuring triple cage mounts, fender mounts, and internal dynamo cable routing.
“A premium Titanium adventure gravel frame with few compromises, built to a high standard, and offered at a competitive price point.” – James Bossi, Bossi Bicycles Founder & Design Manager
The New Grit
“The MY24 Bossi Grit is a complete revamp, with quality-of-life upgrades throughout the platform, expanded compatibility and adaptability, and substantial weight trimming from the base titanium frame. We’ve changed almost everything between the rear derailleur mount and front thru-axle. Nearly every tube, junction, mount point, and interface is updated.”
“Gravel bike design lacked clarity in market expectations when we launched the Grit SX in 2021. Now that the gravel category has matured, and most customers have realised that they won’t replace their road bike, the new Grit can exist in its purist adventure form, unapologetically gravel.” – James Bossi

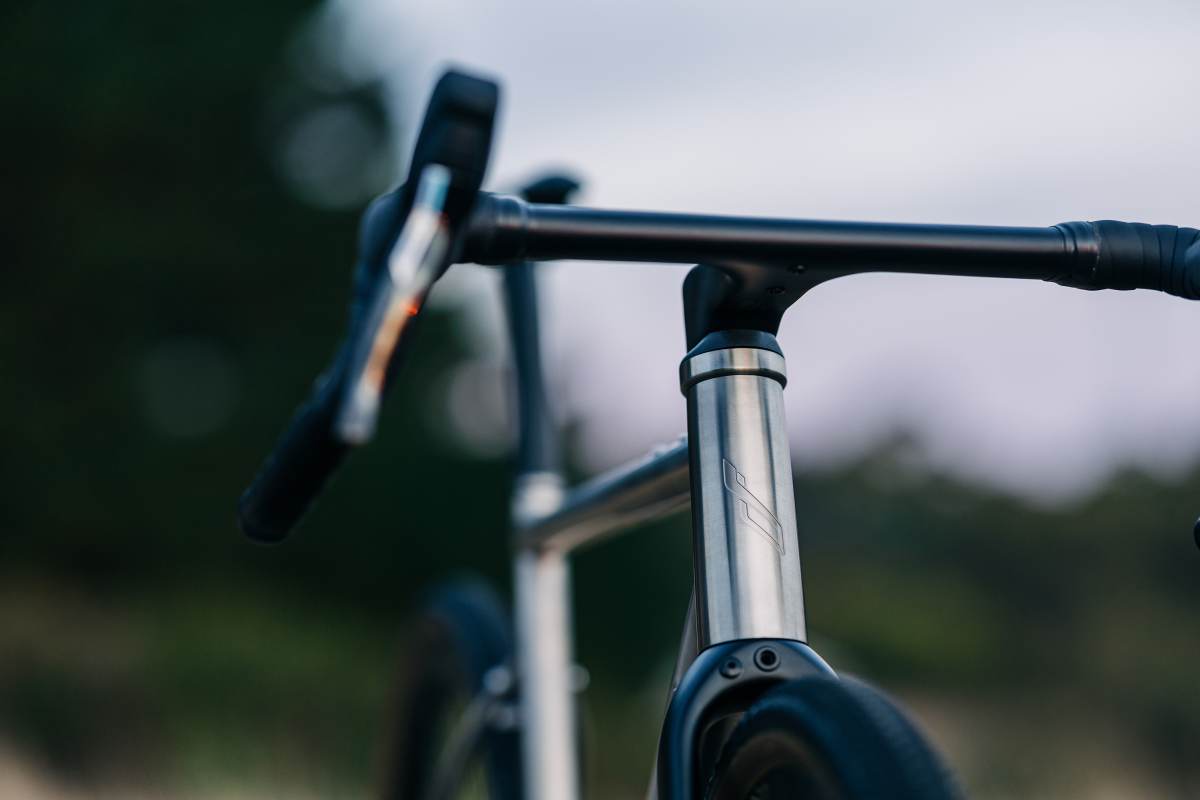

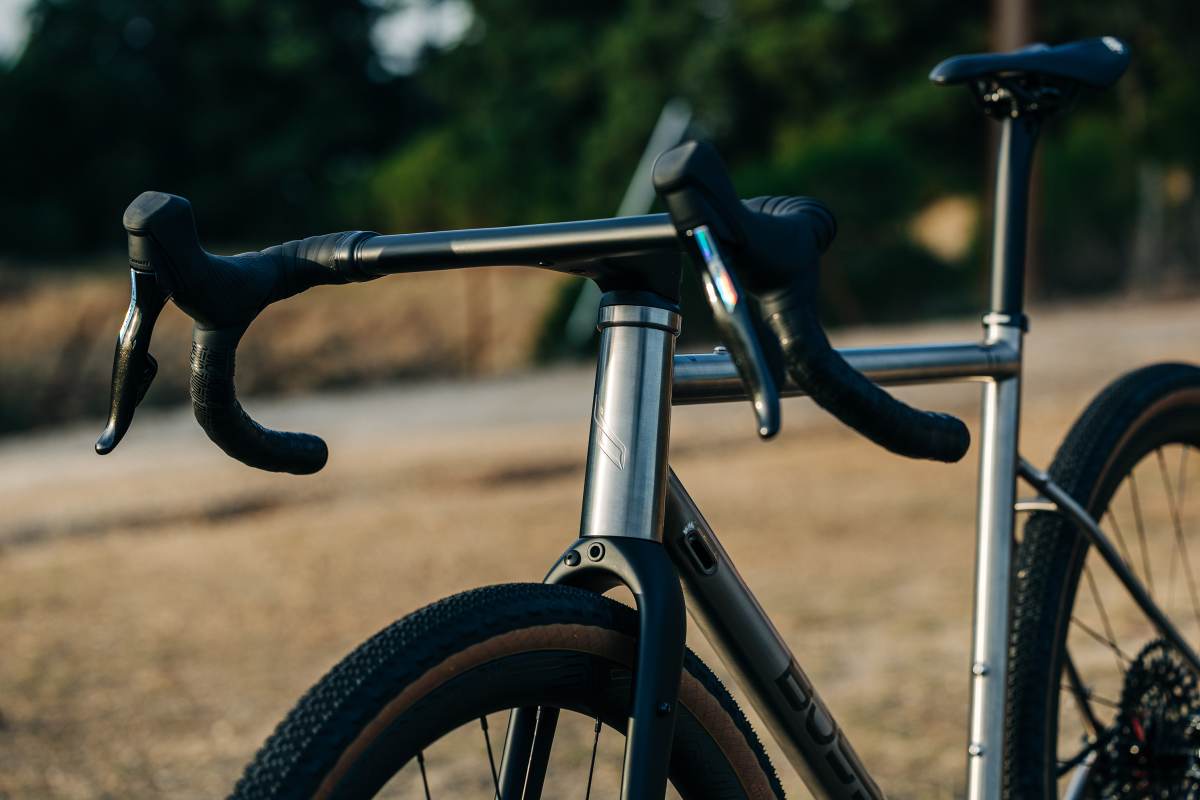

“Our new head tube design is compatible with any integrated and non-integrated cockpit pairing a 1.5″ lower bearing with a ZS44mm upper. This allows the installation of a 1.5” upper for full integration or a 1.125” for semi-internal. Our riders wanted more choice – and we are happy to oblige.”
“The new hybrid tapered headtube design future proofs this frame for any innovation in full integration while remaining backwards compatible with standard cockpits.”

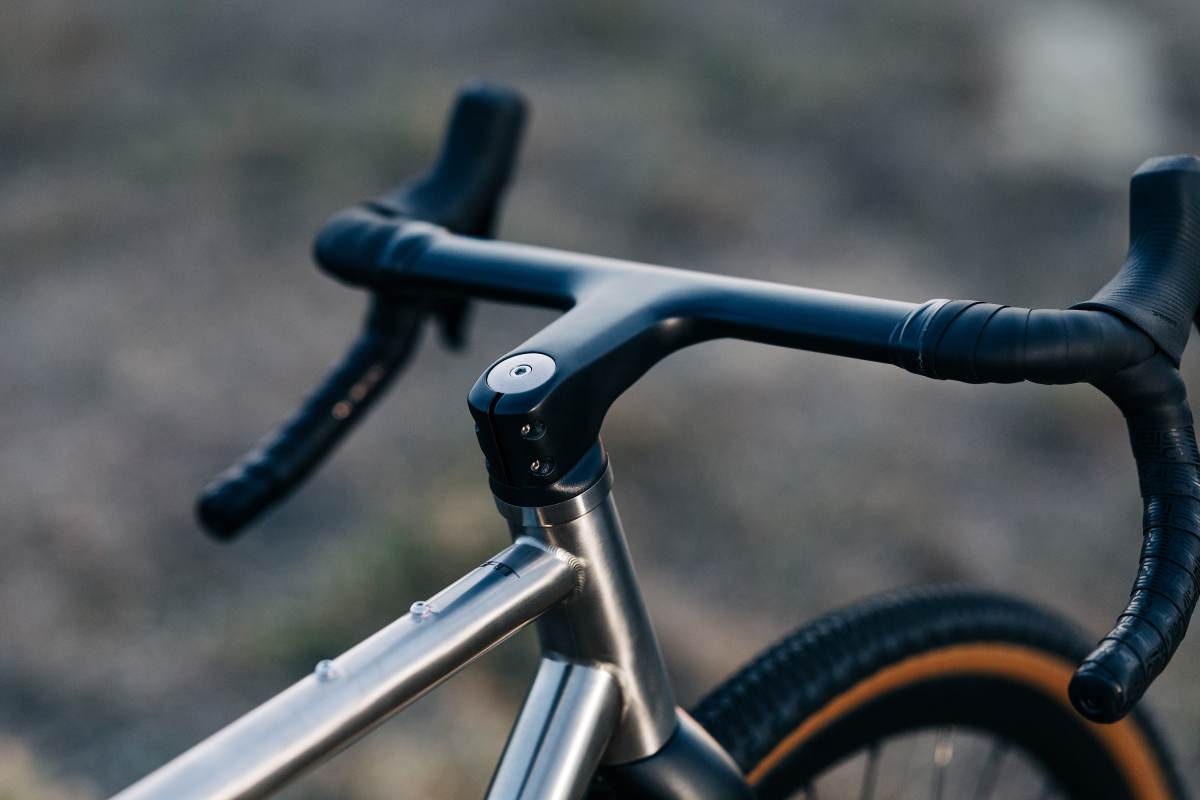

“Does your dream build feature a slammed, one-piece bar and stem with invisible cables? Would you prefer a suspension stem with riser bars? Perhaps you’re a traditionalist who wants round bars and stems with cables and hoses on the outside? All of that is possible. The new universal entry ports on the frame let our Aussie and Euro / USA customers easily route braking and shifting lines on either side without tricky bends or hose contortions.”

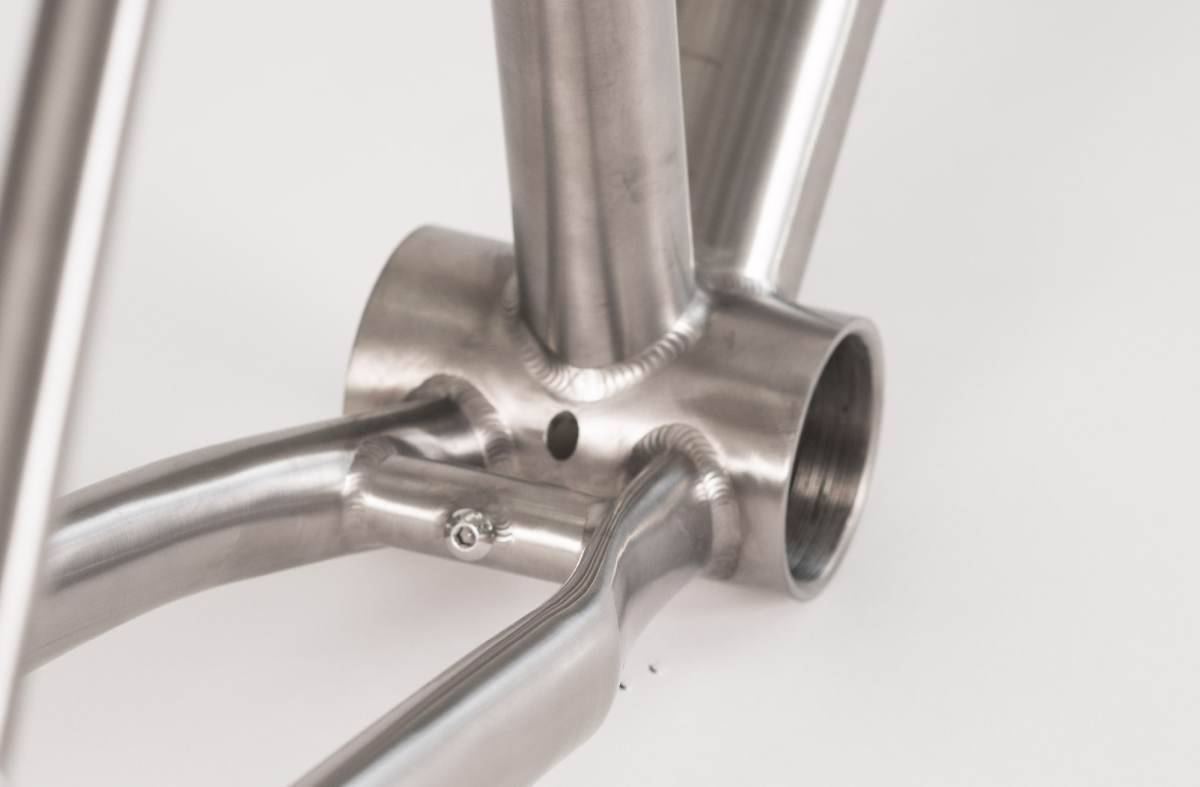

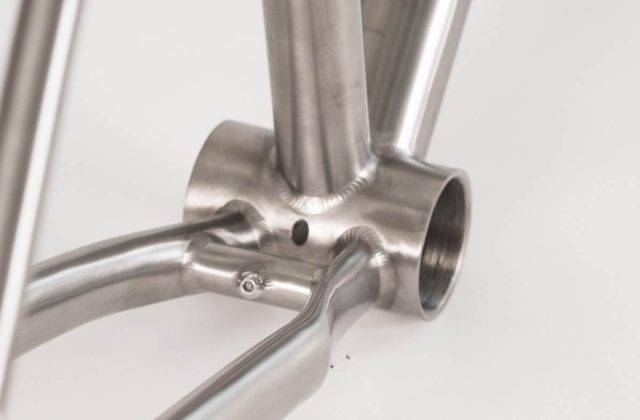

“Advanced manufacturing techniques are driving impressive weight savings. Switching from a CNC to 3D-printed yoke and dropouts and from straight-gauge to double-butted tubes shaved over 150 grams from the base frame. As a bonus, fewer ingress points around the bottom bracket and rear stays have improved water and dirtproofing.”

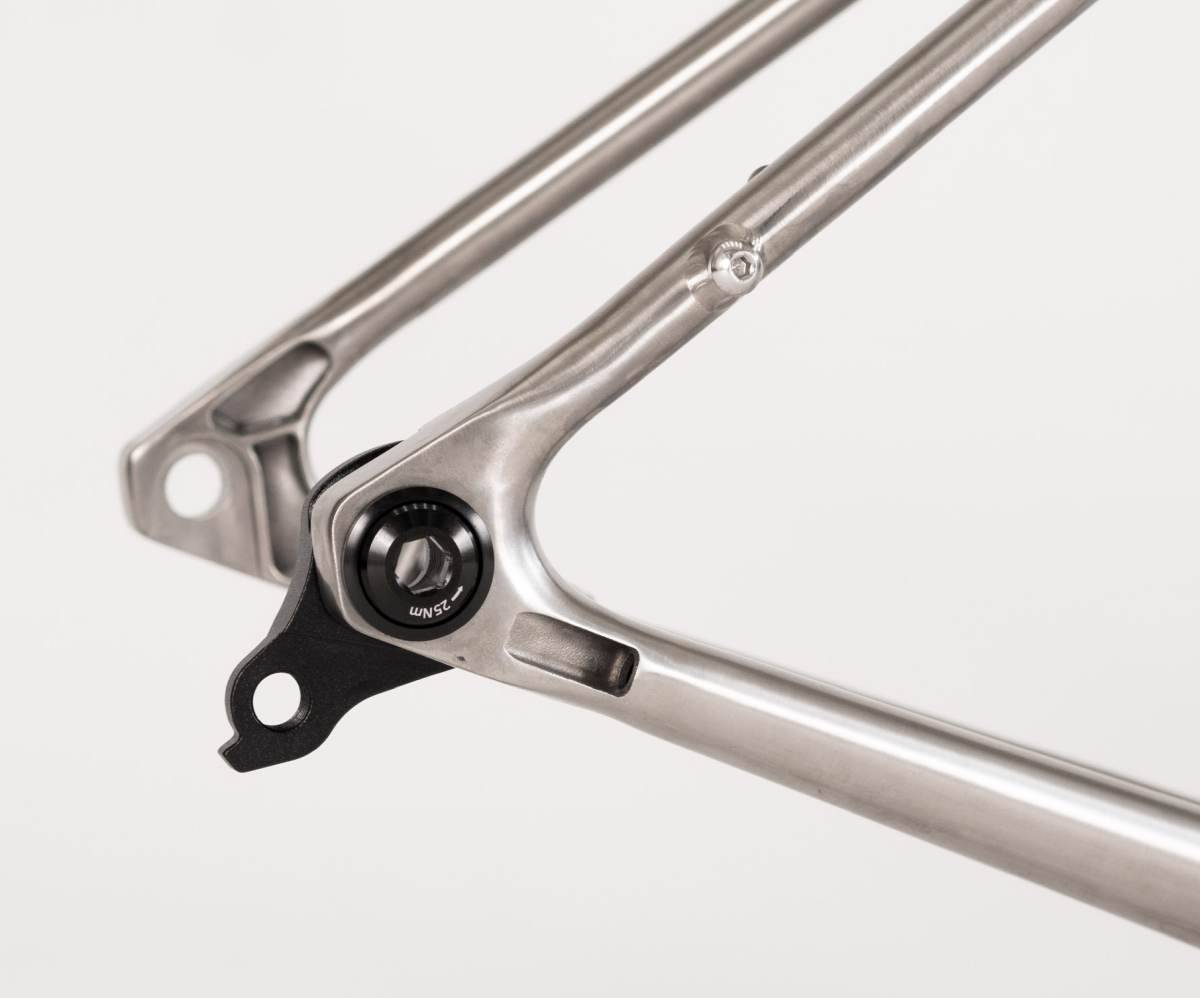

“We’ve hedged our technology bets with Universal Derailleur Hanger (UDH) and SRAM T-type Transmission compatibility. UDH makes it easier to find spares wherever you are and attach any standard rear derailleur from the big brands.”

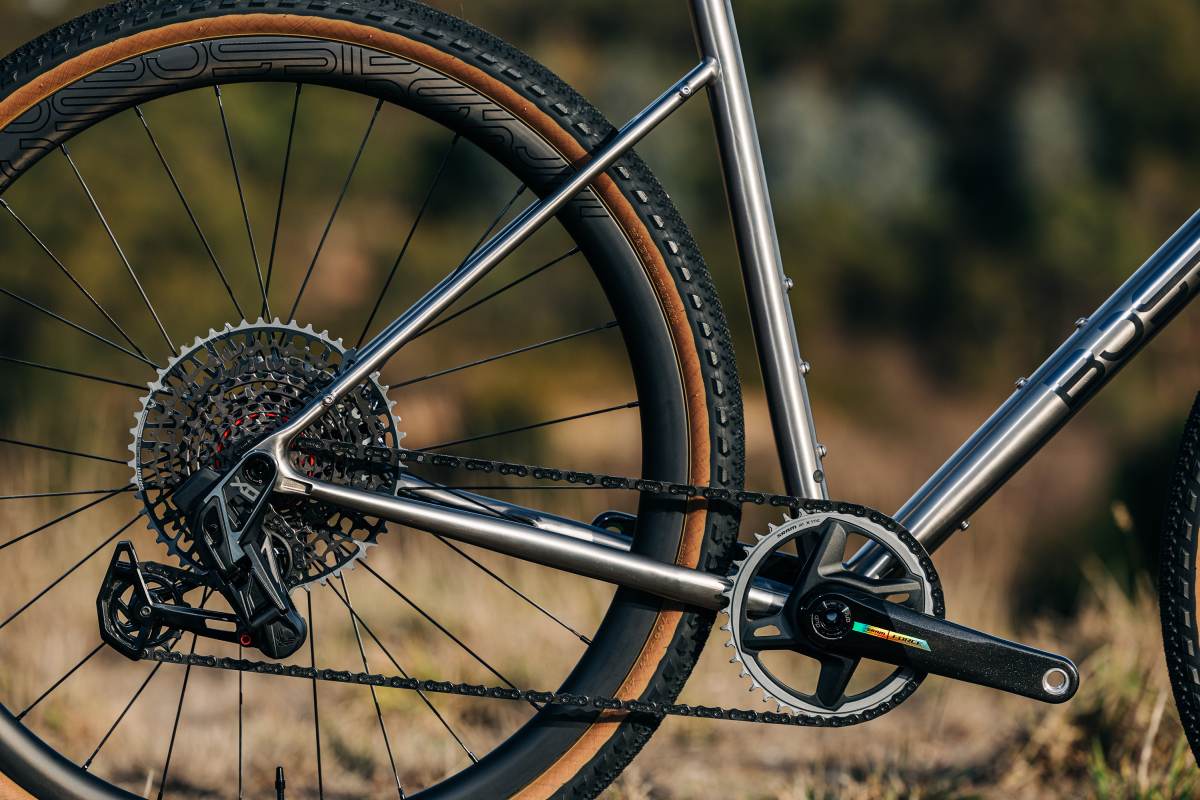

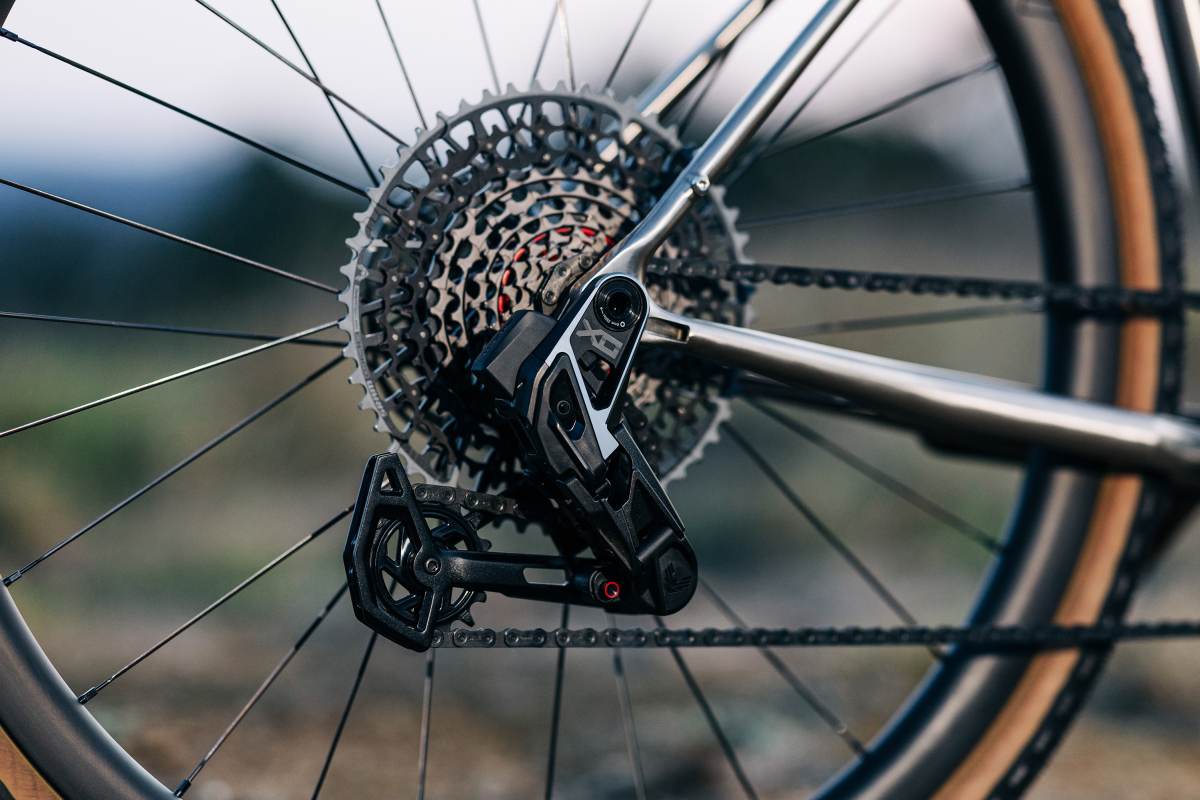

“SRAM Transmission compatibility opens the Grit to the new generation of bomb-proof Eagle rear derailleurs. SRAM’s 1x ecosystem is growing more popular on our gravel builds and T-Type derailleurs are an ideal accompaniment to our robust titanium frames. We’ve removed the braze-on derailleur tab to reflect the popularity of 1x drivetrains, while the rounded seat tube makes band-on mounts easy to add for 2x fans.”

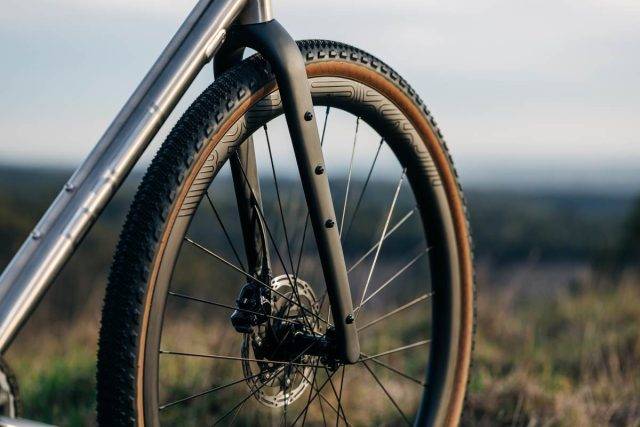

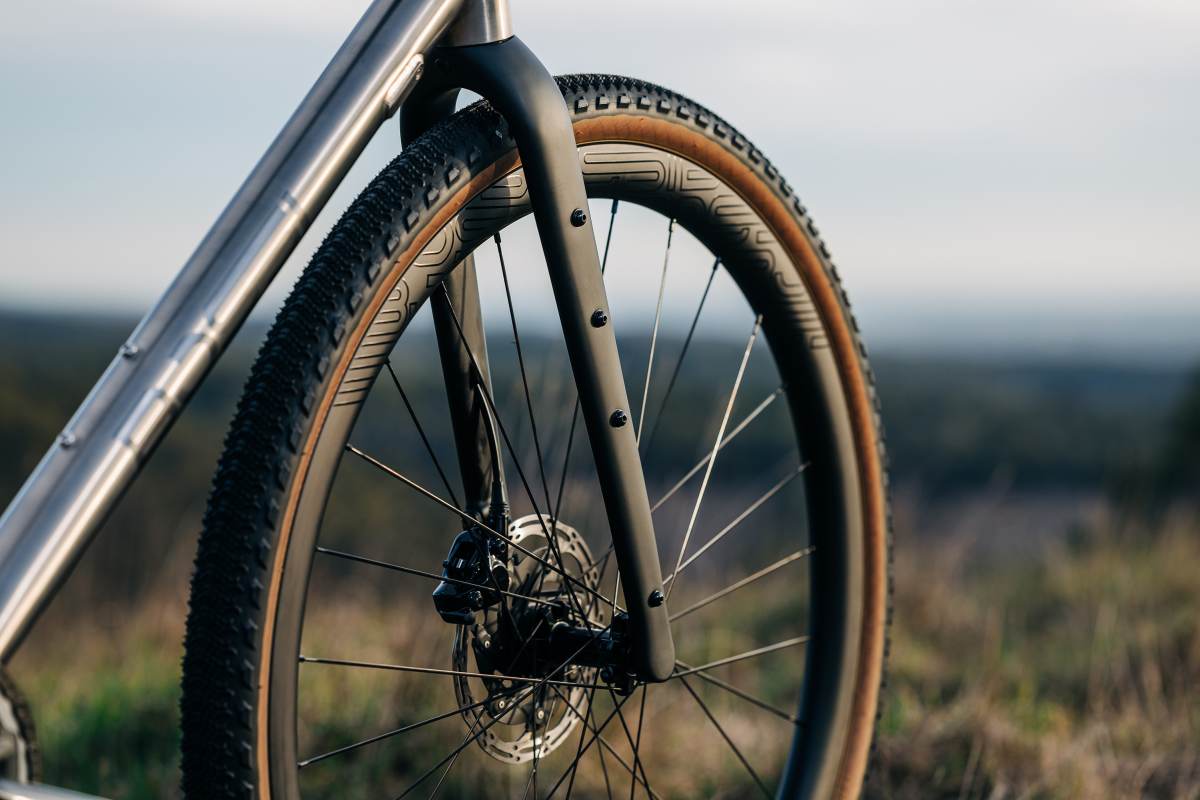

“The upgraded Carbon Gravel Fork emerges from an all-new mould. It has triple cage and full fender mounts, internal hose routing, a replaceable axle thread, and clearance for 50c tyres (and well beyond) for maximum utility. We’ve kept the 50mm default offset and removed the flip chip.”
“The frame is ready for all of your attachables thanks to rack and fender mounts, extra bottle cage bosses on the top tube and beneath the bottom bracket, and routing for a dynamo hubs and cable-actuated dropper post.”
Frame Specification
- 3AL-2.5V titanium tubing
- 6AL-4V titanium bottom bracket (T47 86mm)
- 6AL-4V titanium head tube
- 6AL-4V titanium 3D printed Sram UDH dropouts
- Butted seat post and down tube
- Hydroformed top tube with flattened underside
- Hydroformed double-ovalised down tube
- 3D printed chain stay yoke
- Toray T800 monocoque carbon flat-mount disc fork
- 50mm fork offset
- Internal dynamo cable routing
- Double ovalised chain stays
- Tapered and lowered seat stays
- 3x bidon mounts
- Clearance for 1L bidon
- Flat mount disc brakes
- 12 x 100mm front and 12 x 142mm rear Thru-axle
- Tapered head tube ZS 44mm upper – 1 1/2” integrated lower
- Electronic and mechanical groupset compatibility
- 3D printed dropouts
- Internal cable routing
- 27.2mm seatpost
- Laser engraved logos
- Pannier rack mounts on fork and seat stays
- Full fender mounts front and rear
- Clearance for 50c(700c) and 2.2″(650b) tyres
- Brush Finish
- CNC engraved headtube
- Suitable for 700c and 650b wheelsets

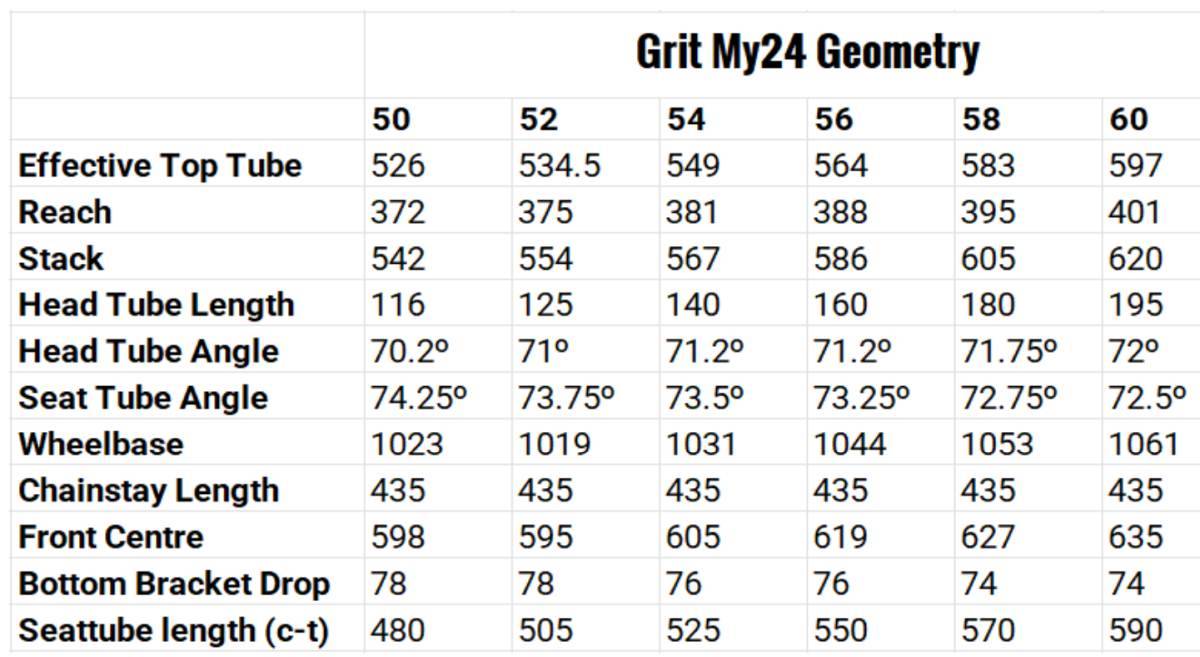

Geometry
Builds & Pricing
“All Bossi bikes are custom built in Australia to suit rider requirements and as such there are no ‘standard’ builds. However below we have listed indicative prices of popular configurations. All prices are in Australian dollars, prices may vary internationally.”
GRX Mechanical
- Bossi Grit frameset
- Shimano GRX RX820 1×12 groupset
- DT Swiss GR1600 wheelset
- Pro Discover bar
- Pro Discover stem
- FSA T47 Bottom Bracket
- Pro Stealth Offroad saddle
- Pirelli Cinturato H gravel tyres
- Burgh bartape
- = $8890 AUD
RIVAL AXS
- Bossi Grit frameset
- SRAM Rival AXS Transmission groupset
- Bossi carbon GR35 700c wheelset
- Zipp Service Course stem
- Zipp SC XPLR bars
- Selle Repente Artax GL Carbon saddle
- Pirelli Cinturato M tyres
- Burgh bartape
- = $9990 AUD
GRX Di2
- Bossi Grit frameset
- Shimano GRX Di2 RX825 2×12 groupset
- Bossi carbon GR35 700c wheelset
- Bossi integrated carbon gravel cockpit
- FSA T47 Bottom Bracket
- Pro Stealth Offroad saddle
- Pirelli Cinturato Gravel RC tyres
- Burgh bartape
- = $11215 AUD
FORCE AXS
- Bossi Grit frameset
- SRAM Force AXS 1x groupset
- Bossi carbon GR35 700c wheelset
- Bossi integrated carbon gravel cockpit
- Ergon Allroad Core Pro saddle
- Teravail Rutland Tyres
- Burgh bartape
- = $11480 AUD
About Bossi Bicycles
“Bossi Bicycles is a Sydney-based company that makes titanium frames, carbon wheelsets and forks, and a range of small titanium parts exclusively. We pride ourselves on making bikes for the real world. Some brands pursue lighter, faster, stiffer, more aero. We pursue better.”
Our philosophy: “Bikes that are optimised but not compromised, bikes that are lightweight but durable, bikes that have refined stiffness for driveability but flex for comfort and character. As the old saying goes ‘the best bike is the one you enjoy riding the most’ and that’s what we aim to create.
