Press Release: Full-Dynamix / Battaglin Gravel S (Steel) and Gravel C (Carbon) Frames – Italian Beauty

full dynamix gravel bike

Grand-Tour victories are the line that separates good riders from champions. A first-place finish in the Giro d’Italia, the Vuelta a Espana or the Tour de France, the toughest races in the world, cement a rider’s place in history as one of the greats.

full dynamix gravel bike
Left: Eddy Merckx, Right: Giovanni Battaglin.

Giovanni Battaglin belongs to the elite group of riders that have won two Grand-Tours in the same year. As the second rider in history to achieve the Giro-Vuelta double, he ranks among the most talented stage racers of all time. Before him, only Eddy Merckx. After him, only Alberto Contador.

full dynamix gravel bike

At the time, the peloton was made up of some ferocious racers legitimately described as the most inspiring in history. Luis Ocaña, Joop Zotemelk, Freddy Maertens, Roger De Vlaeminck, Hennie Kuiper, Marino Basso, José Manuel Fuente: they all would ride to leave nothing on the table. There were no radio and in-ear headphones, just 6-speed steel bicycles and legs. The rhythm was always high, and the dominant verb in every race was just one, “attack”.

It was an era of talented athletes, and the explosion of the audacious Battaglin got him plenty of attention.


Full Dynamix is a gravel-only brand, with a long history in cross-country mountain biking. The brand was founded in 1999 by Giovanni Battaglin. The technologies of the frame are the result of studies and experiments that revolve around gravel cycling, developed by testing the outcome of every one of our choices directly on white roads.

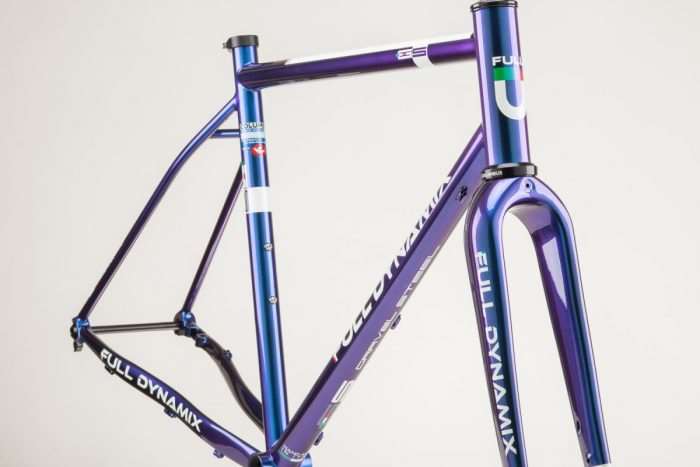

Gravel S – Italian-made Steel Gravel Frame

full dynamix gravel bike

“Silky Smooth Gravel Riding”

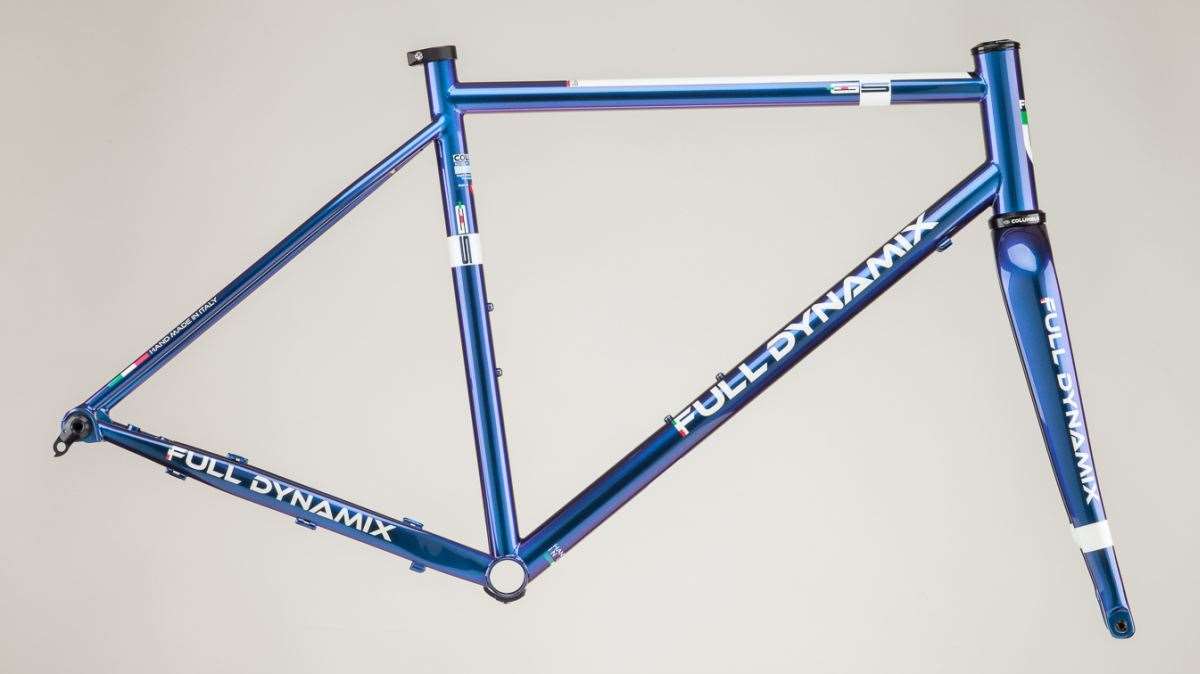

Gravel S is a gravel frame made from Columbus tubing for those who look for maximum comfort on dirt.

Handbuilt by Italian masters framebuilders, it will take you on dirt roads for hundreds of miles with steel’s unique smoothness.

full dynamix gravel bike

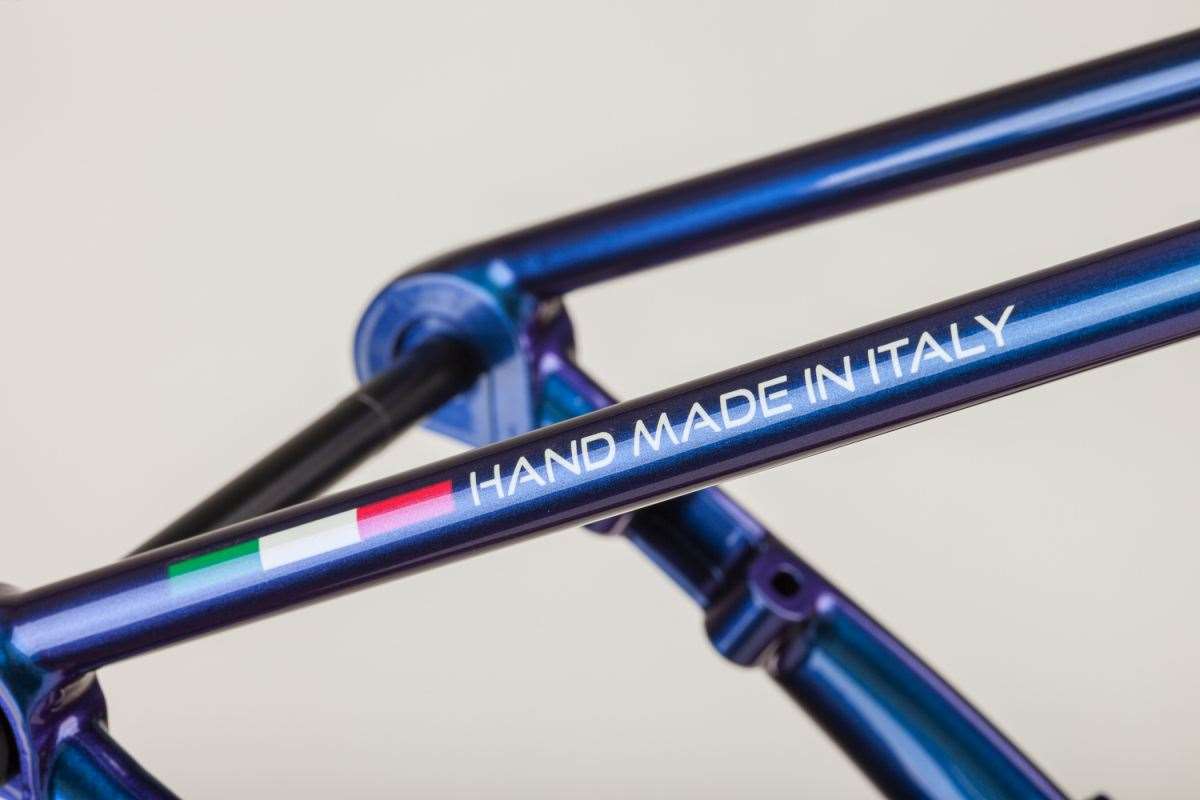

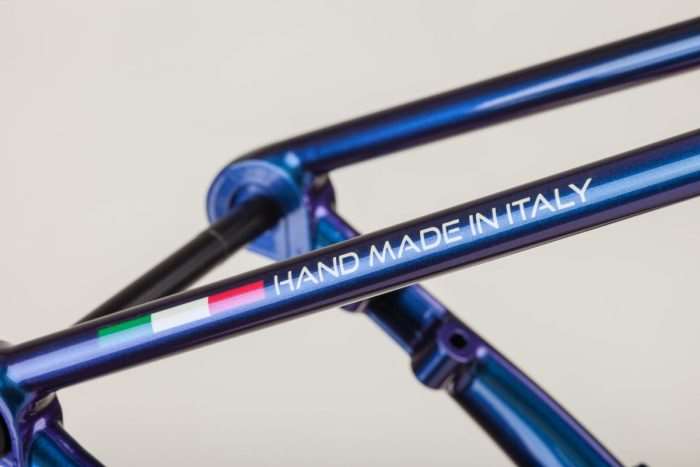

Gravel S is an Italian product that displays beautiful Italian craftsmanship. The Italian framebuilders are artists of welding.

When they take the torch in their hands, it’s always to join the tubes through flawless welds, that create strong, long-lasting joints.

But Made in Italy is not just a choice that honours our artisanal heritage.

full dynamix gravel bike

There are 3 practical reasons why our steel gravel frames are manufactured by Italian artisans:

  • A gravel frame is constantly subjected to stress, so it has to be very resilient. During the welding phase, the framebuilder needs to be in perfect control of the temperature, in order to avoid overheating the tubes and thus making them more fragile, which increases the risk of cracks or breaking. It is demanding work, that requires time and patience. Basically, the exact opposite of what big factory operations do to reduce the costs and increase production volumes.

  • Being in complete control of the building process gives us the possibility to keep testing and improving the innovative solutions generated in the development phase.

  • Local handcrafting is the only way to create a product that is unique for you, custom made from your specifications and body measurements.

full dynamix gravel bike

full dynamix gravel bike

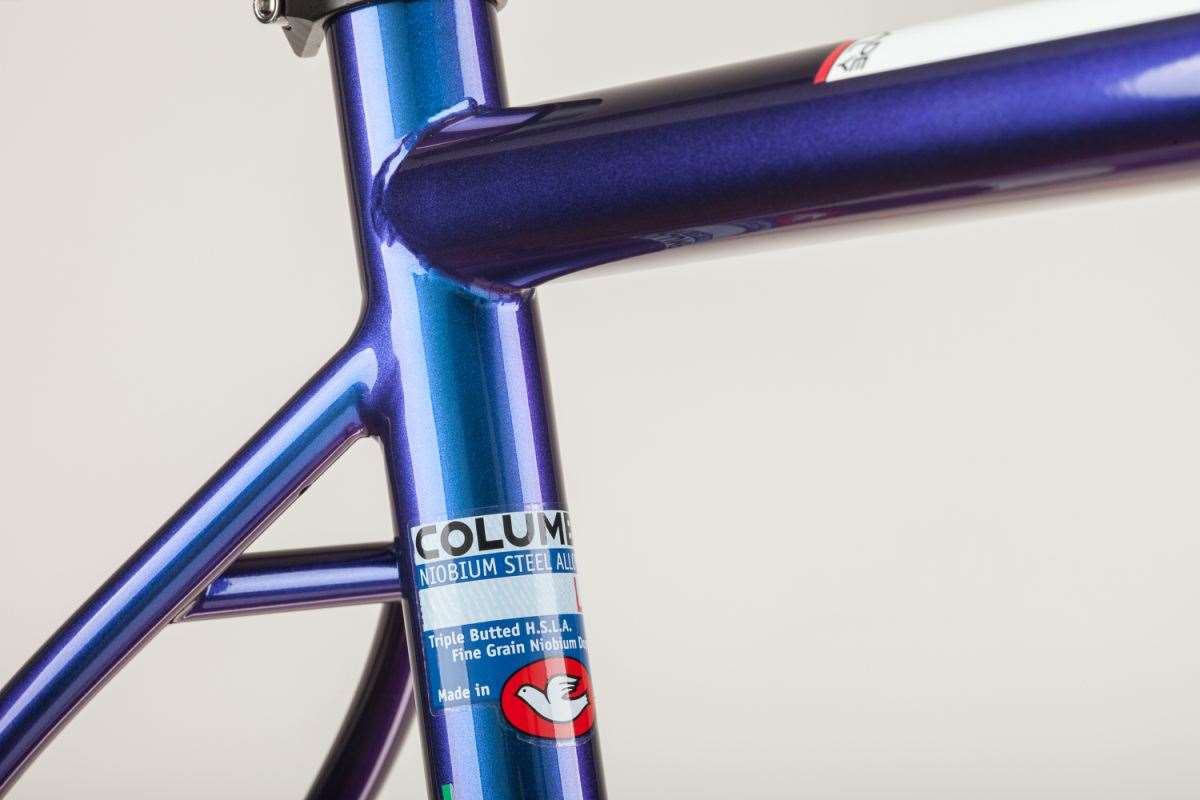

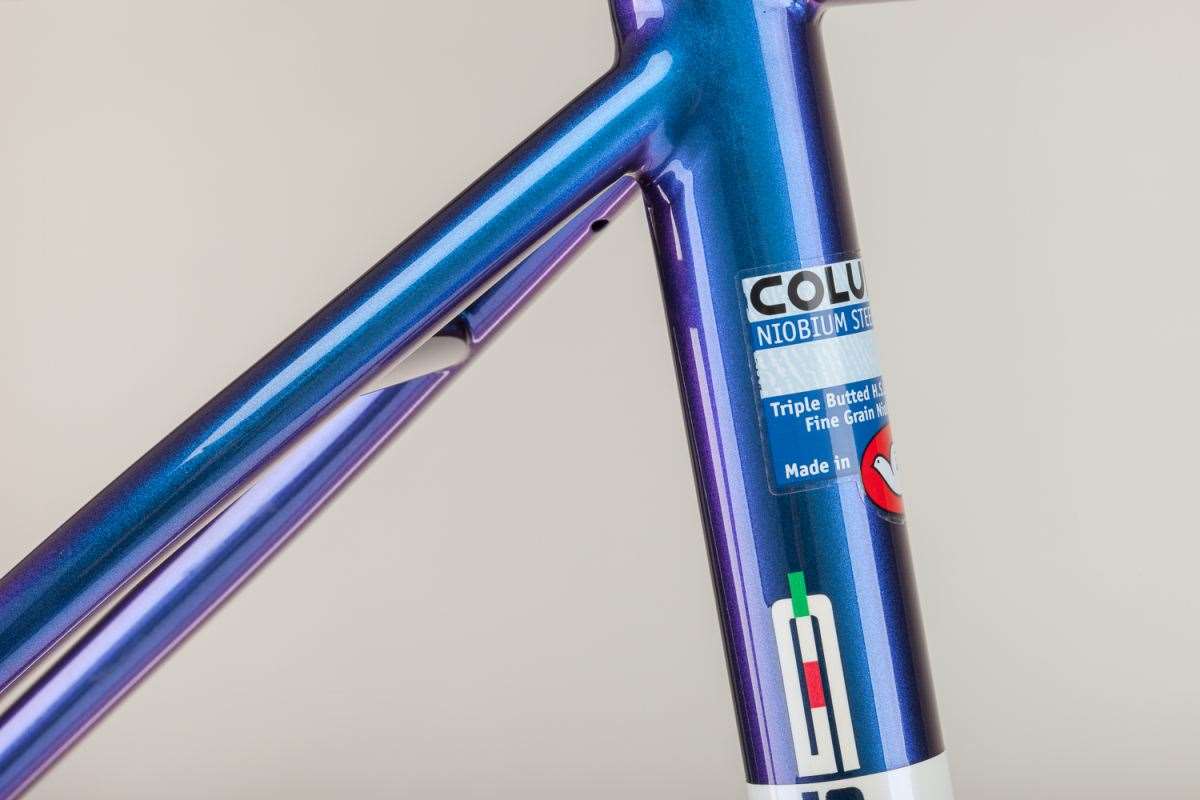

Columbus Life Custom Tubing:

Columbus stands for the #1 steel tubing ever, pure and simple. Thanks to a 40-year collaboration, Columbus customized the LIFE tubes to our specifications, coming up with a triple-butted Omnicrom set. An exclusive solution in terms of design, stiffness and lightness.

full dynamix gravel bike

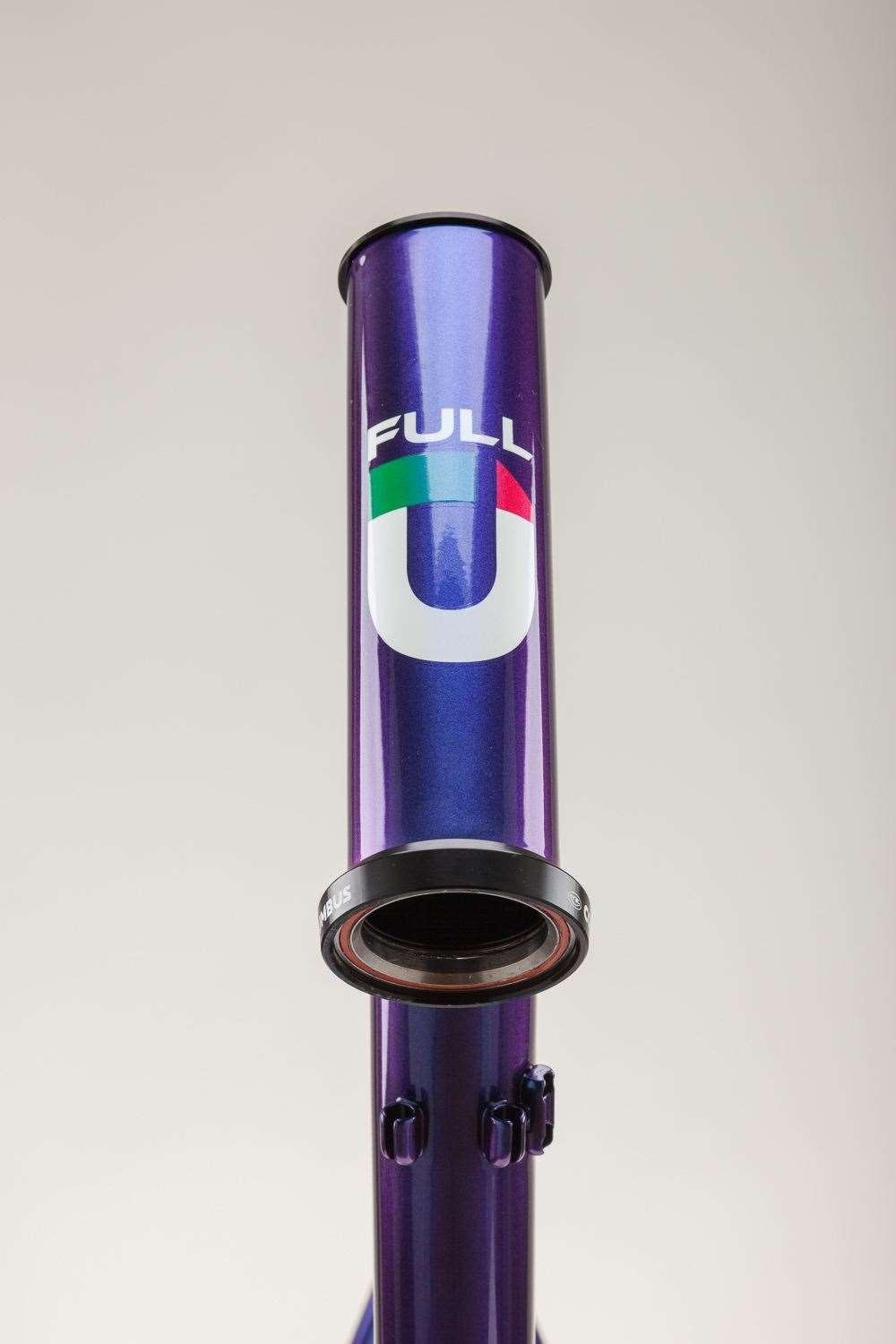

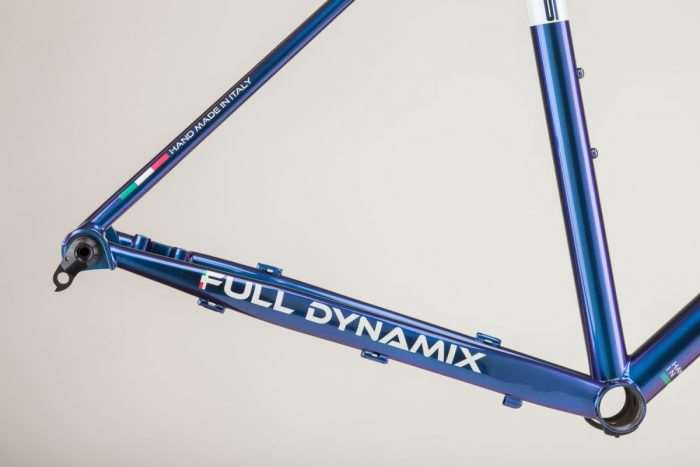

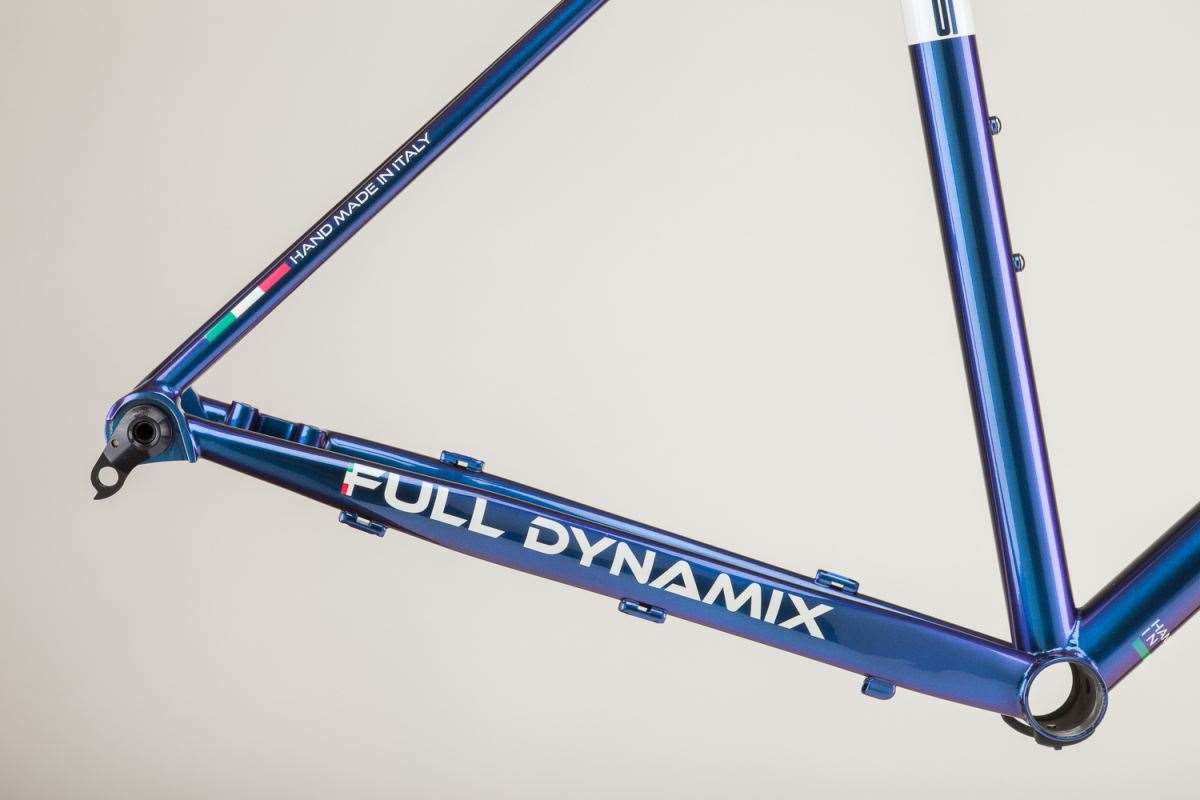

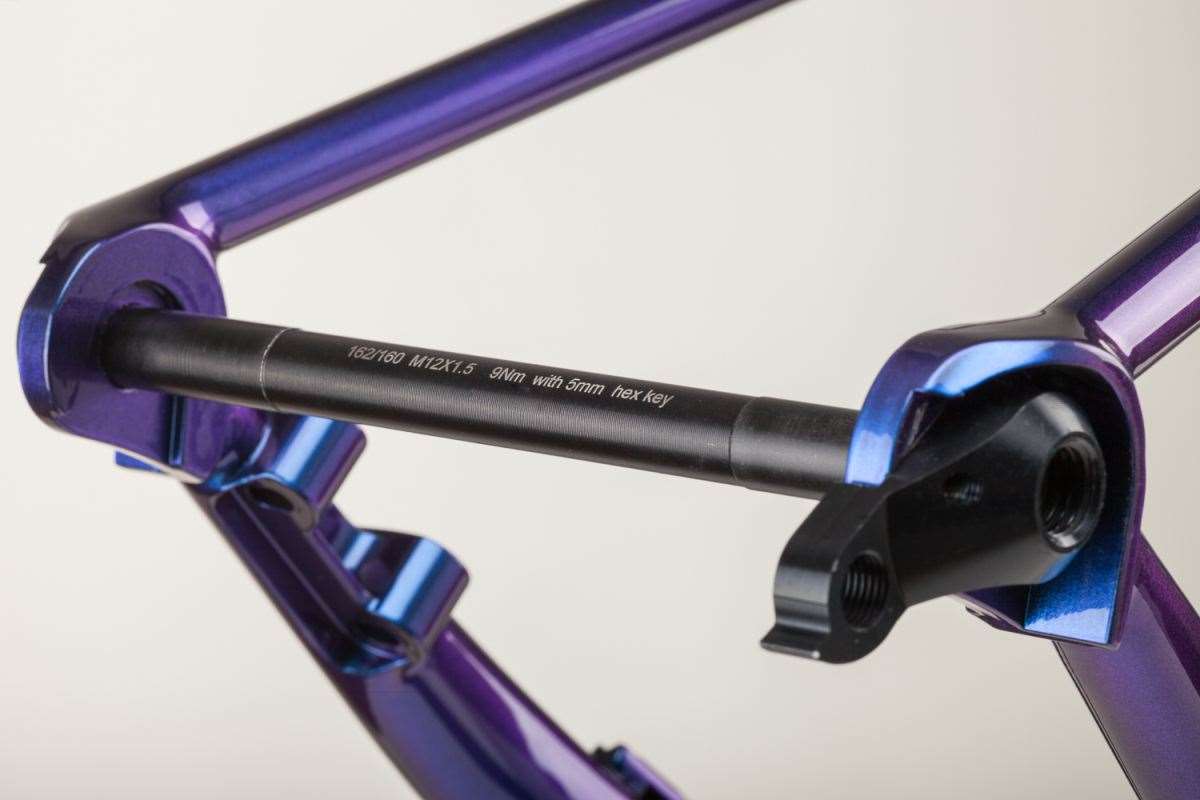

Gravel S features a thru-axle both in the fork and in the rear triangle.

Opposed to the quick release, the thru-axle increases the frame stiffness and helps with overall control when you pedal at high speed, even if the terrain is irregular and could make it difficult for you to pedal with confidence.

full dynamix gravel bike

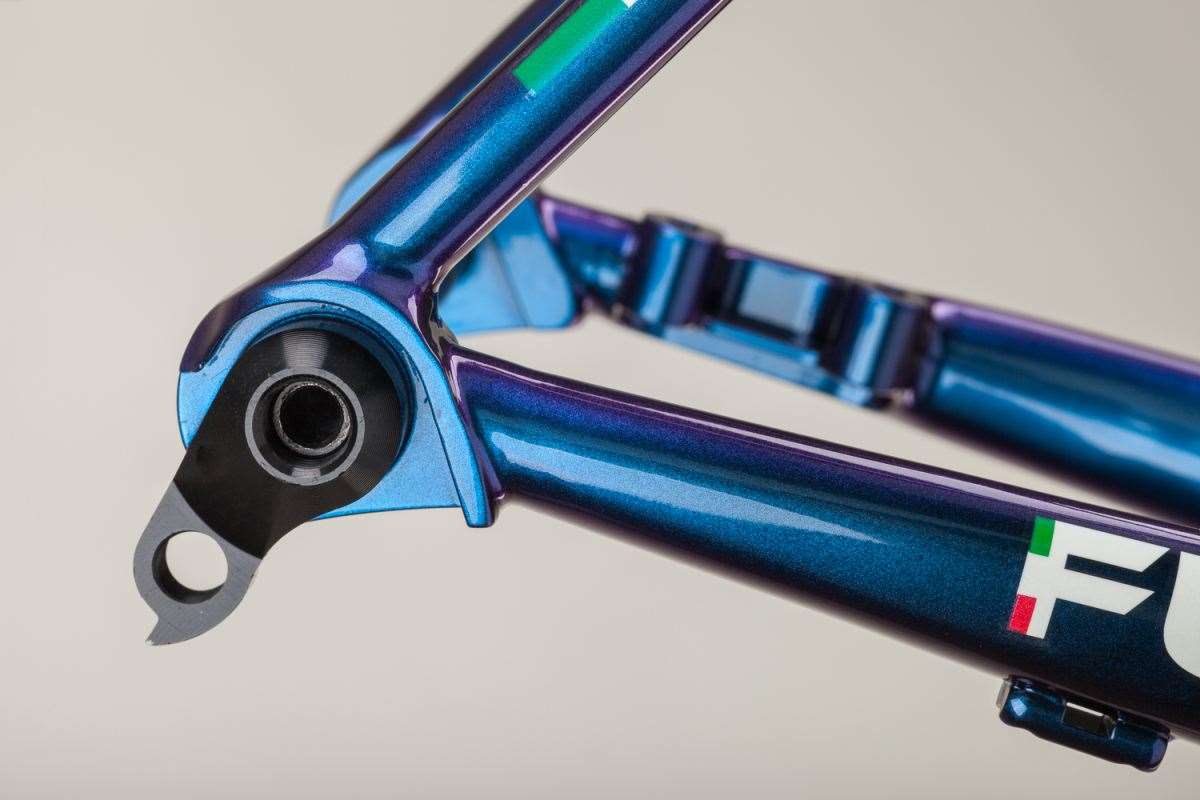

It would have been easier to use a standard derailleur hanger. But it would have been treason to the Italian craftsmen that turn their inventive ideas into real products. That’s why we’ve designed our own CNC-machined hanger, with a specific shape that makes for the correct force distribution when braking and helps maintaining the alignment of the frame while it’s being built.

It’s replaceable, so you can easily fit a new one in the case it breaks.

full dynamix gravel bike

Specifications:

  • Tubing: Columbus Life custom design.
  • Fork: Full carbon monocoque tapered fork with thru-axle, 1 1/8″ to 1 1/2″.
  • Weight: 1,980 gr (medium size), with all parts except thru-axle.
  • Cable routing: External.
  • Bottom bracket: BSA (68 mm) English-threaded.
  • Groupset compatibility: X1 and X2 compatible.
  • Brakes: Hydraulic disc brakes, flat mount.
  • Hangers: Aluminium interchangeable rear hangers.
  • Rear thru-axle: 142x12mm.
  • Seatpost diameter: 27.2 mm.
  • Tire clearance: 700c x 41 mm / 650b x 50 mm.

Available in six sizes from XS (505mm top tube) to XXL (610mm top tube).

Read more about the Gravel S here.

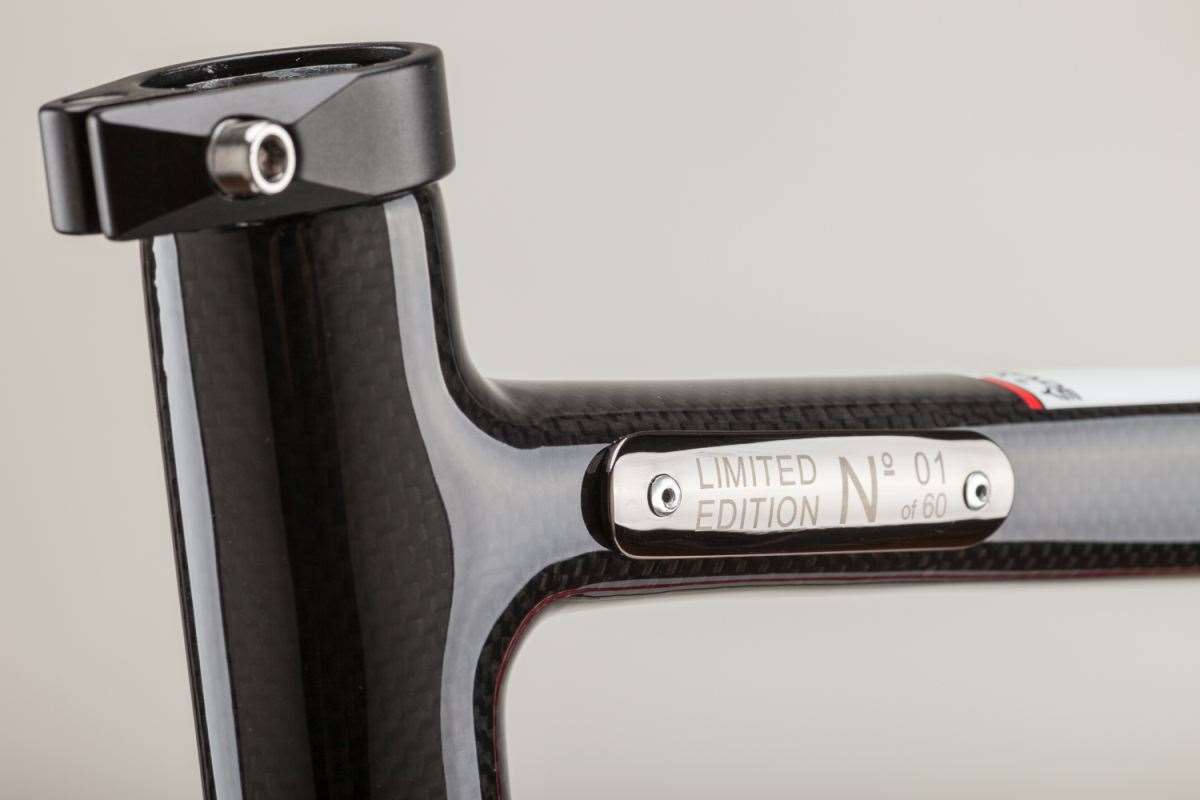

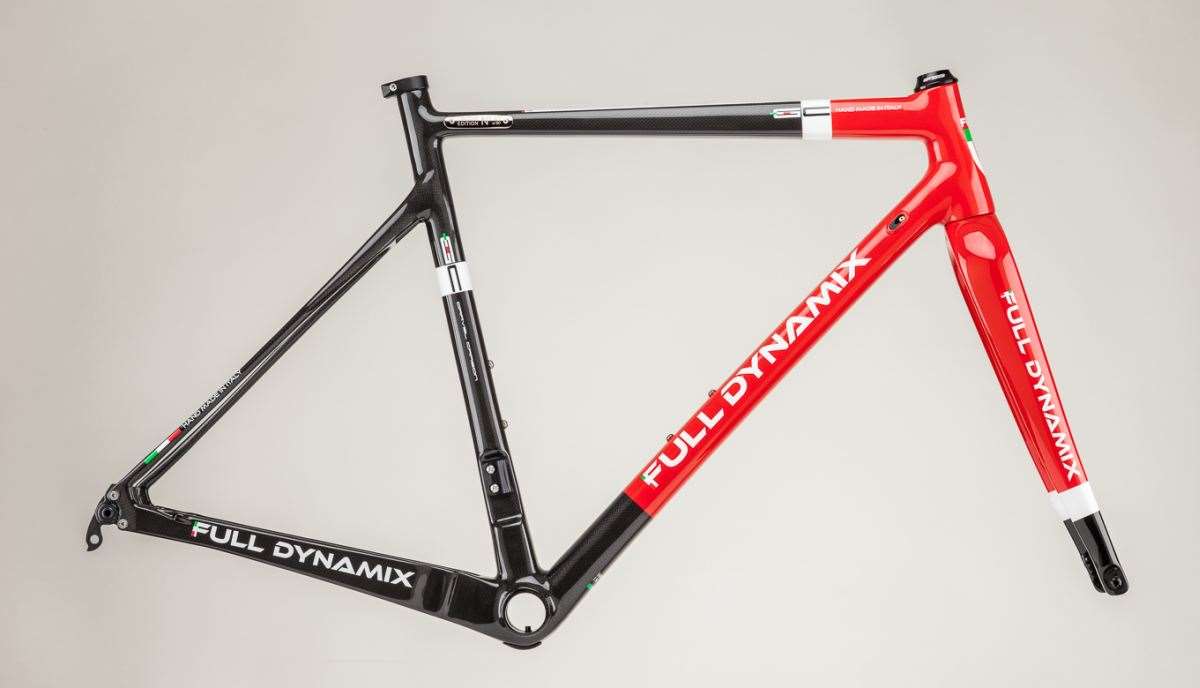

Gravel C – Italian-made Carbon – Only 60 Available Worldwide. Full speed on dirt.

full dynamix carbon gravel bike

Gravel C is a handmade carbon-fiber handmade frame, built to efficiently tackle gravel roads.

This is the frame in the Full Dynamix range that you want for challenging situations, all-around gravel grinding and aggressive riding styles.

full dynamix carbon gravel bike

The lightness of the carbon fiber and the racing geometry will make for a bike that is extremely efficient in rhythm changes and responds well to sudden accelerations.

Gravel C presents all the features required by an expert cyclist, who knows the ultimate in bicycle technology and wants to race on uneven ground at full speed.

full dynamix carbon gravel bike

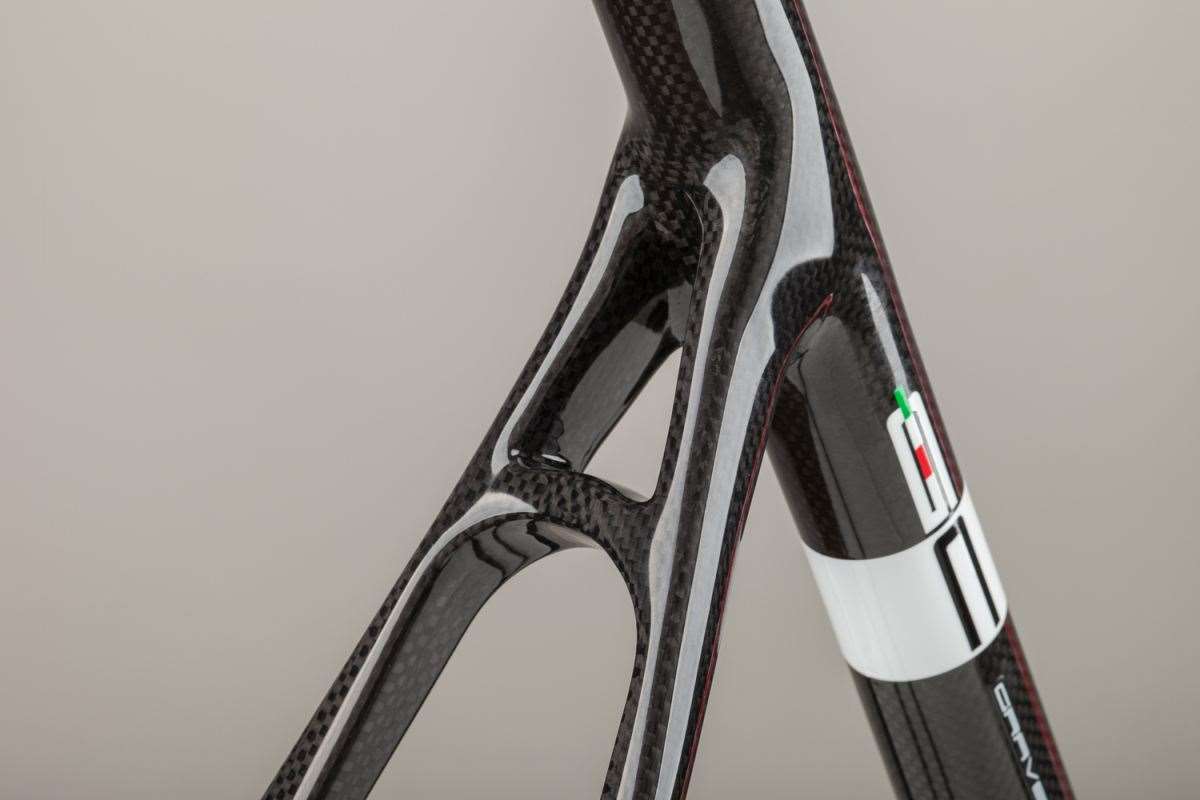

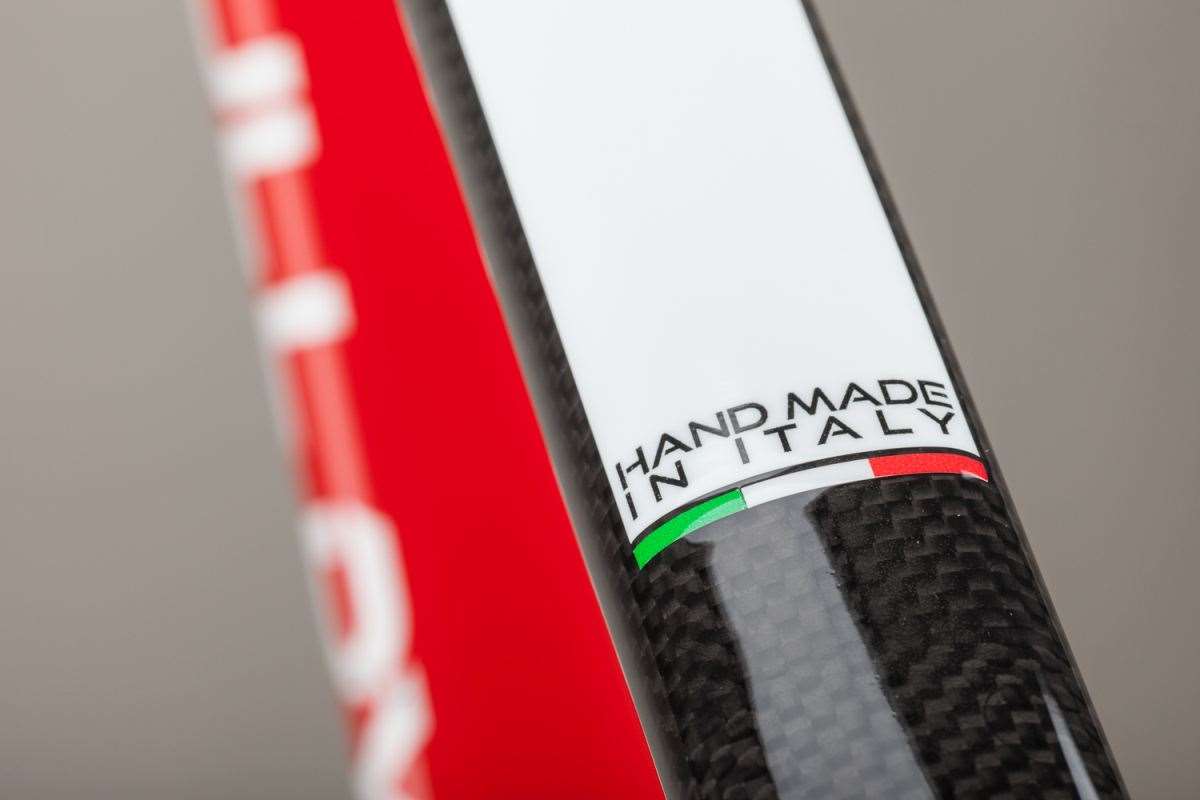

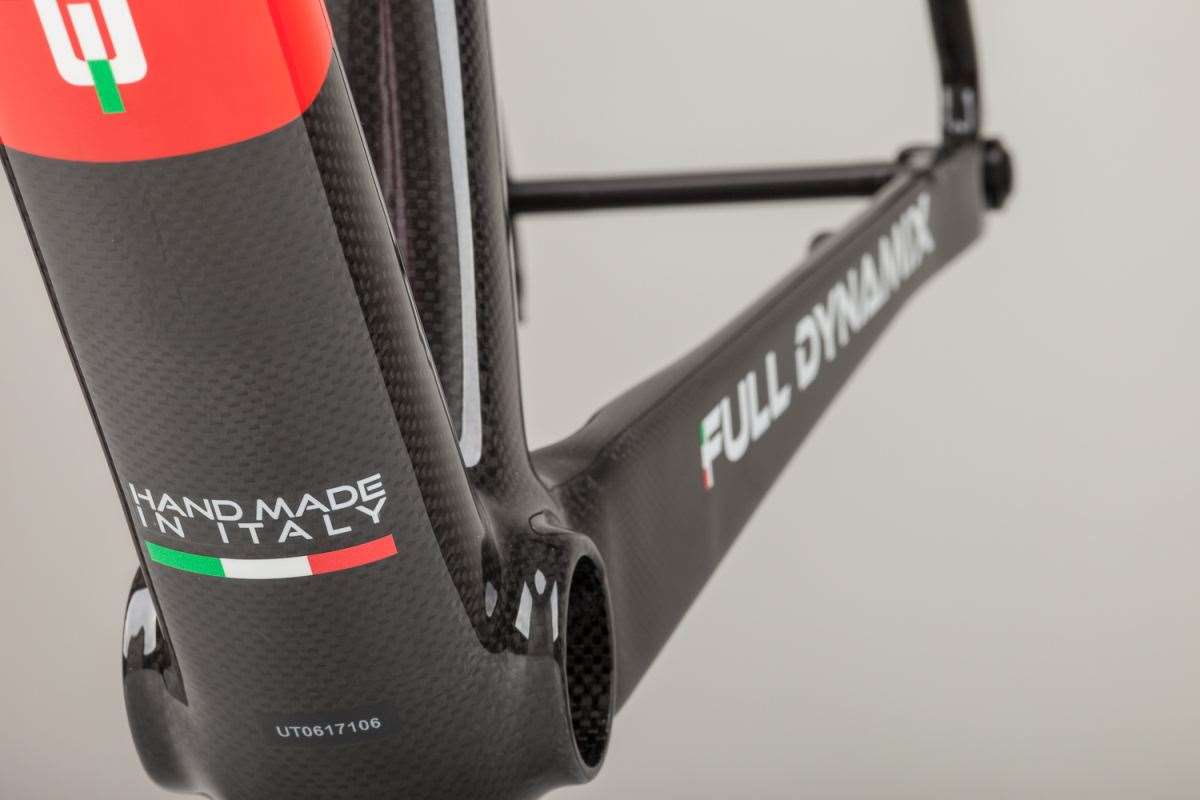

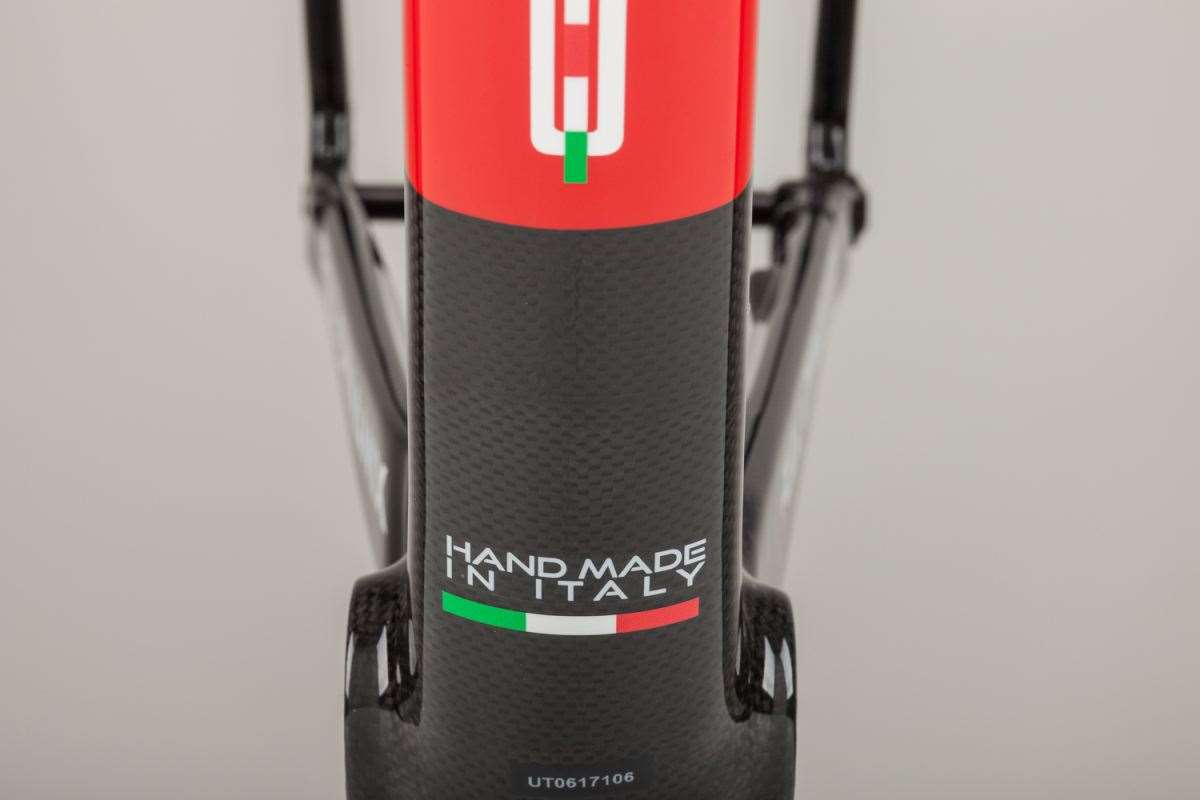

The Full Dynamix frames are artisanal products built with the tube-to-tube construction. An exclusive combination of patient handcrafting and precision instruments.

full dynamix carbon gravel bike

In the era of product standardization and frames that are mass produced, we believe in the value of Italian craftsmen that taught the world how to build bicycles. But ours is not just a choice tied to the glorious Italian frame building tradition.

full dynamix carbon gravel bike

There are reasons that justify the manufacturing of our gravel carbon frames by Italian artisans:

  • Bonding the tubes together with carbon layers allows to control with great precision the width and the different layering of the material, so the frame is particularly suitable for absorbing the vibrations of irregular terrain.

  • Being in complete control of the building process gives us the possibility to keep testing and improving the innovative solutions we find in the development phase.

full dynamix carbon gravel bike

full dynamix carbon gravel bike

Full Carbon 3K Frame:

Even in gravel, a frame meant for competition must reach an excellent ratio between lightness and stiffness. For this reason, Gravel C is created entirely from 3K carbon, the material that makes it so efficient and suitable for high-performance.

full dynamix carbon gravel bike

Thanks to the tube-to-tube building construction and systems that eliminate the air and the dust during the manufacturing process, Gravel C grants you the absolute certainty of a stiff and finished frame.

full dynamix carbon gravel bike

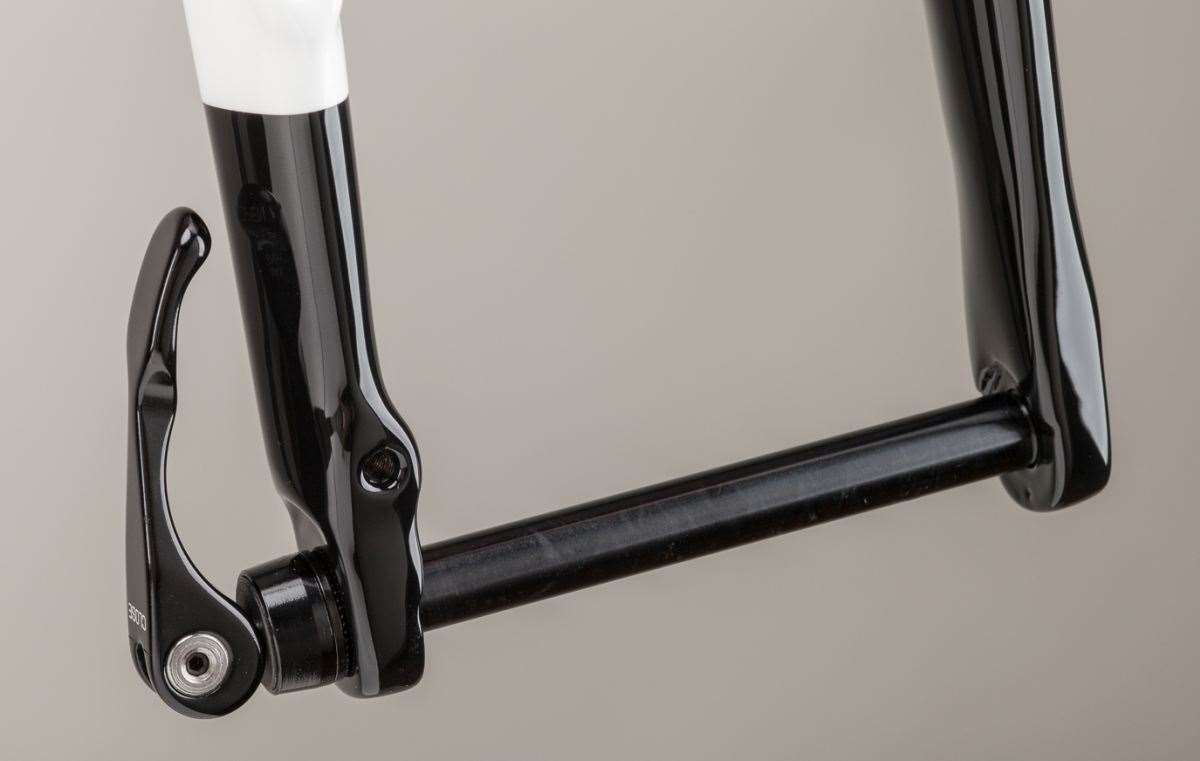

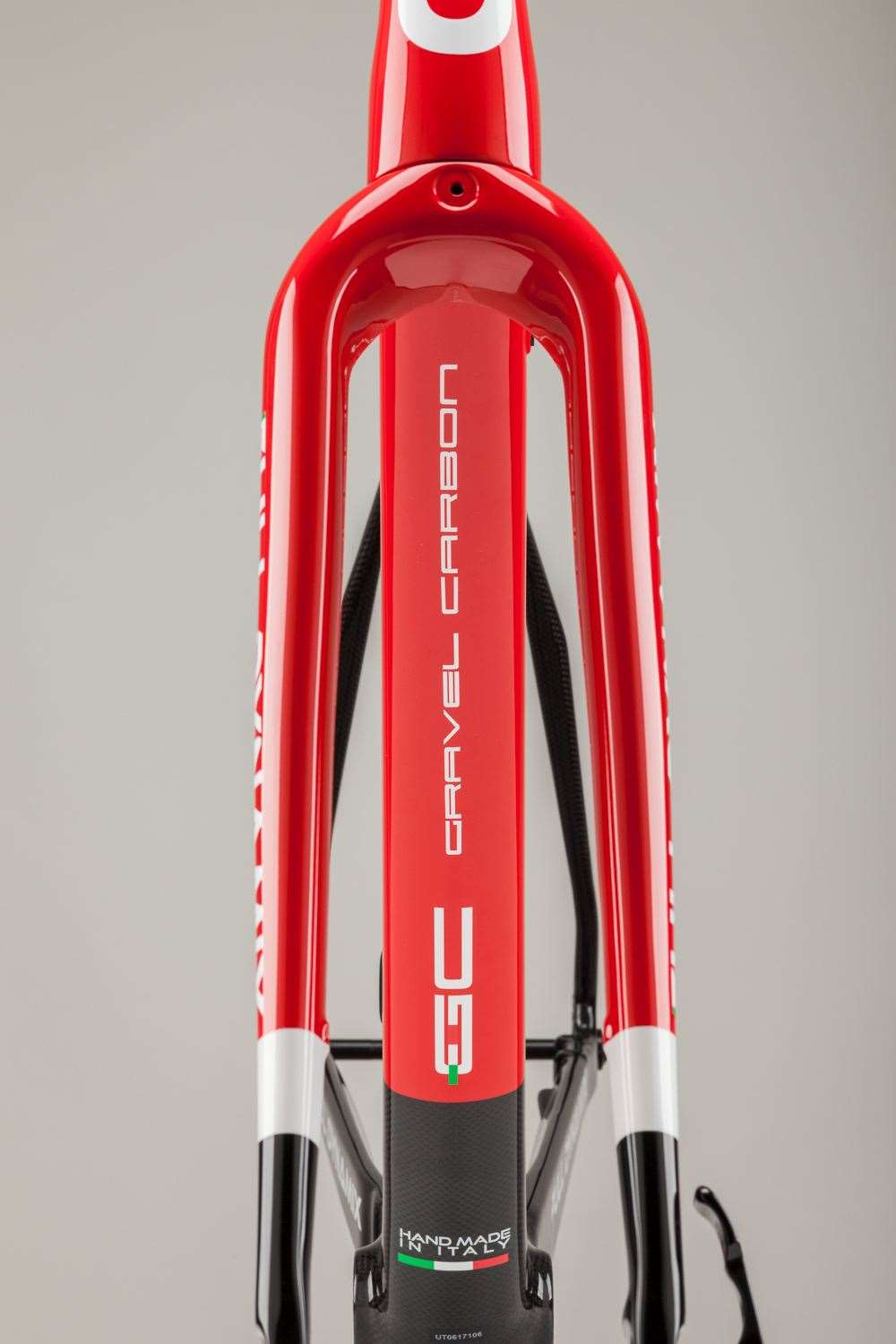

Gravel C features a thru-axle in the fork and rear triangle. Compared to the traditional quick release, the thru-axle increases stiffness and eases the riding when you pedal at high speed, even though the terrain may be irregular which adds to the challenge of controlling your bike.

full dynamix carbon gravel bike

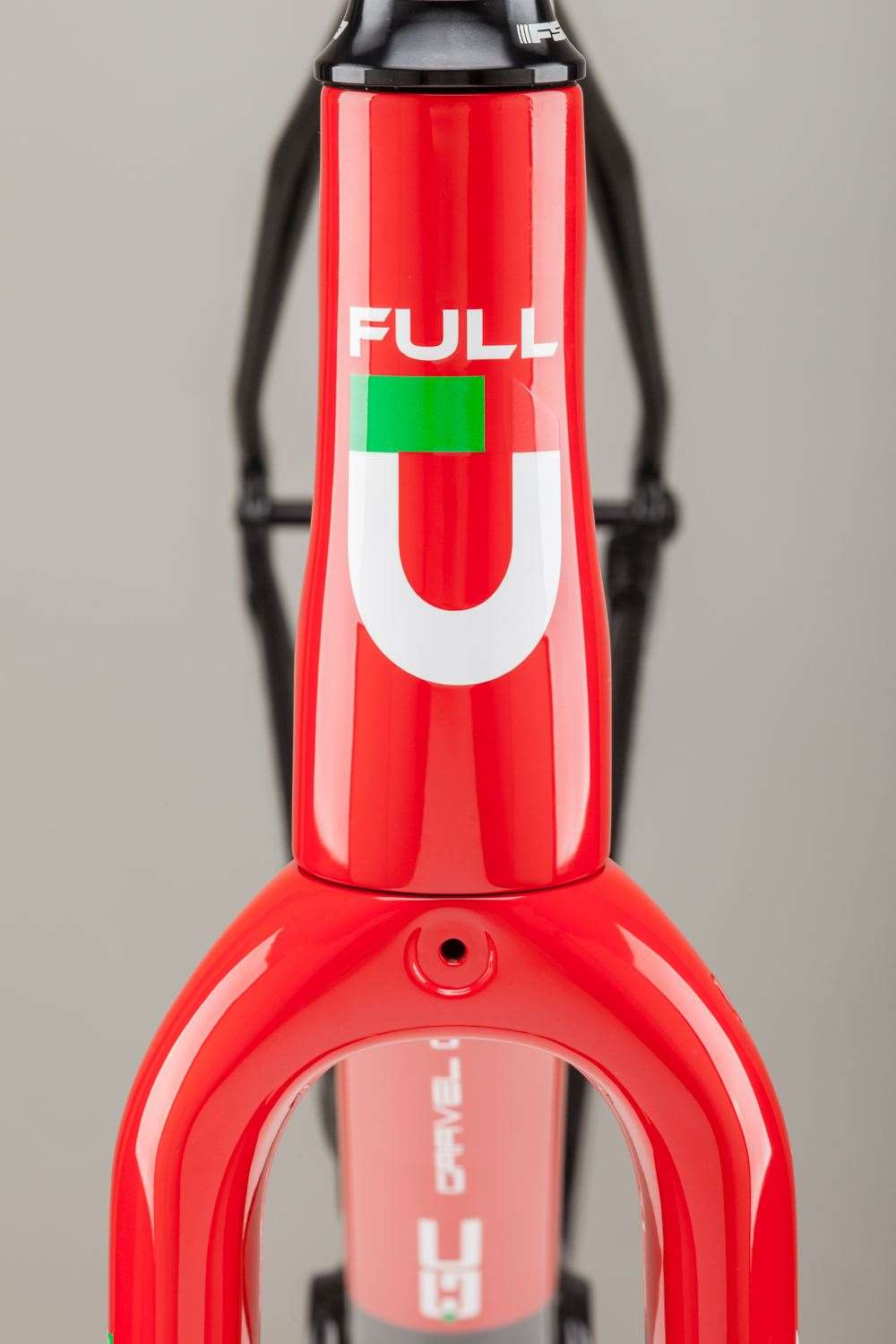

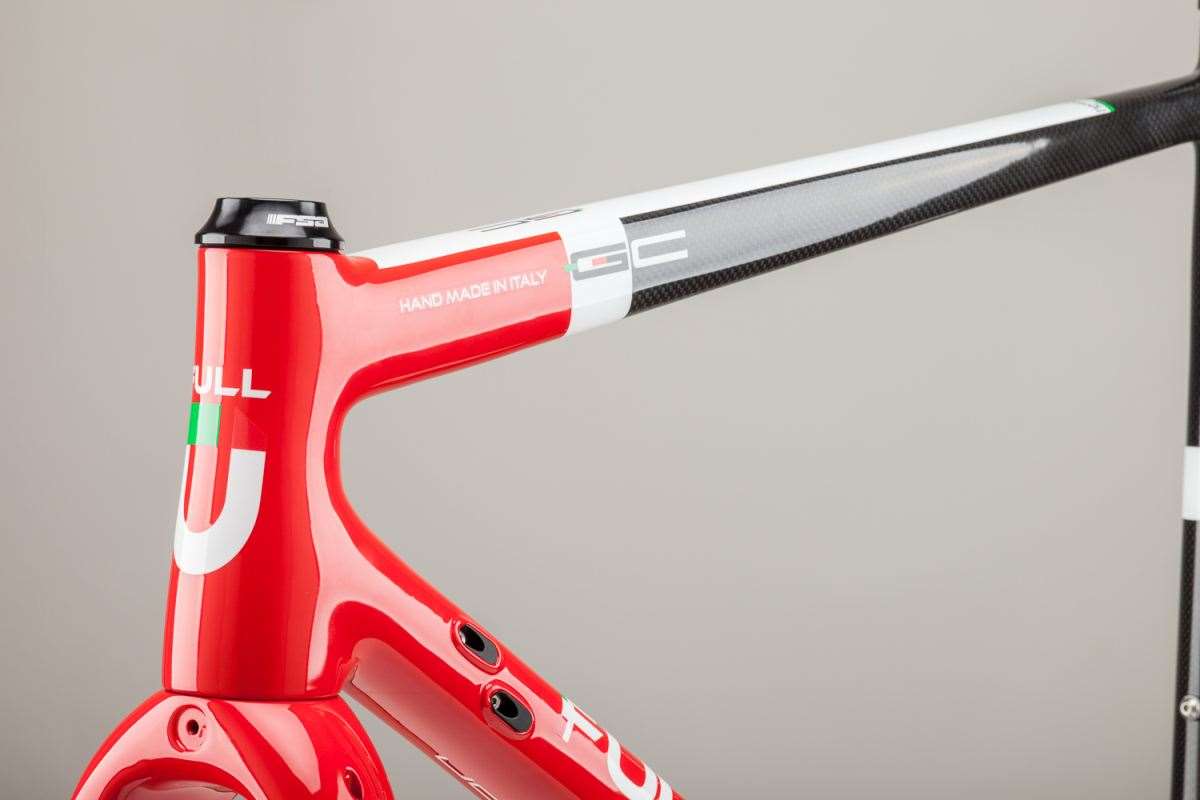

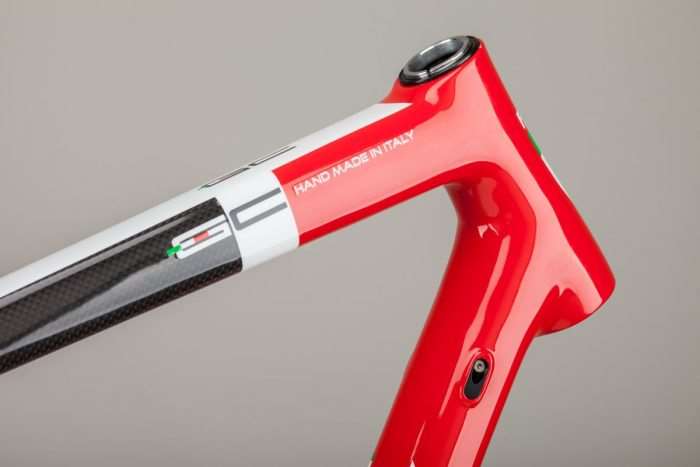

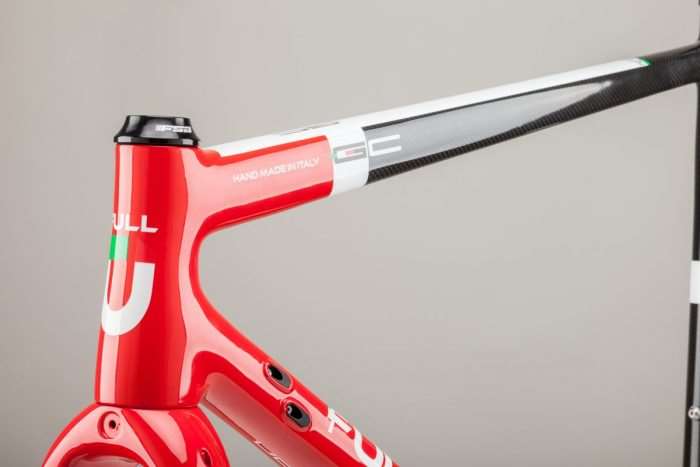

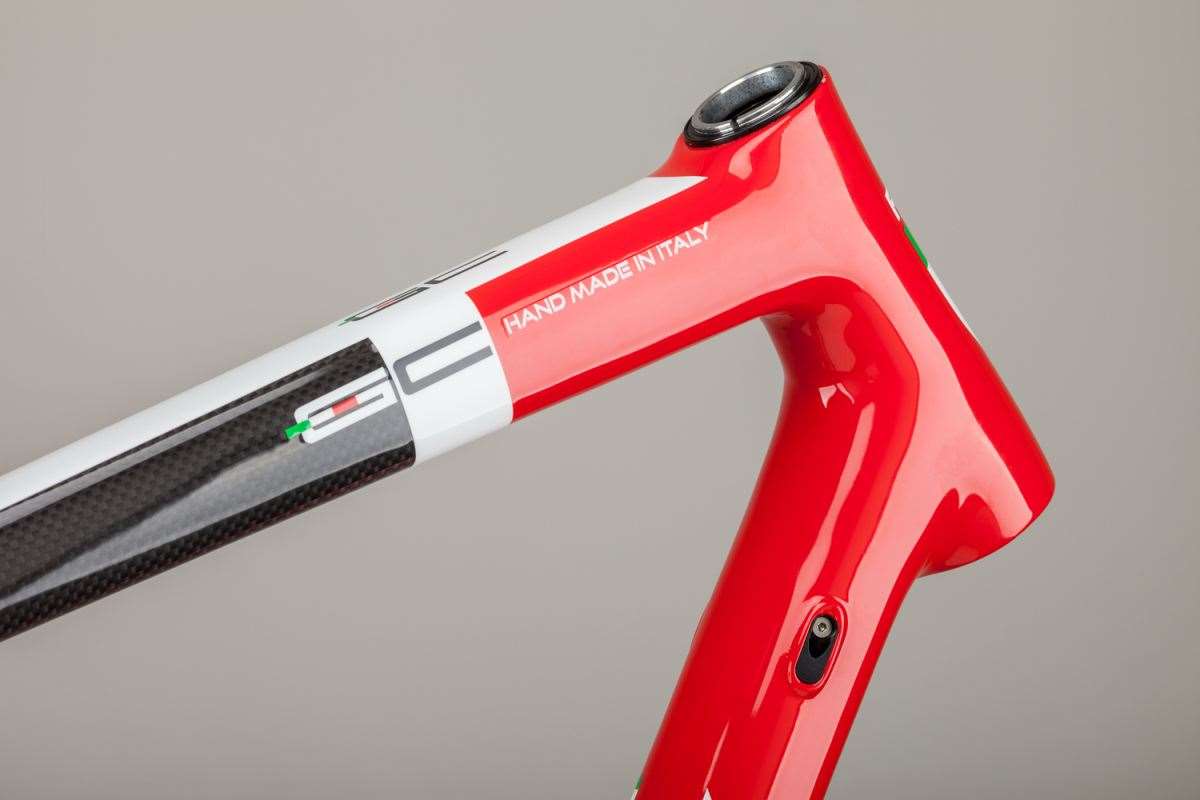

The Gravel C’s tapered head tube enhances steering stiffness, providing better control of your bike when cornering.

full dynamix carbon gravel bike

Specifications:

  • Frame: Full 3K carbon fibre.
  • Fork: Full carbon monocoque tapered fork with thru-axle, 1 1/8″ to 1 1/2″.
  • Weight: 1,180 gr (medium size), with all parts except thru-axle.

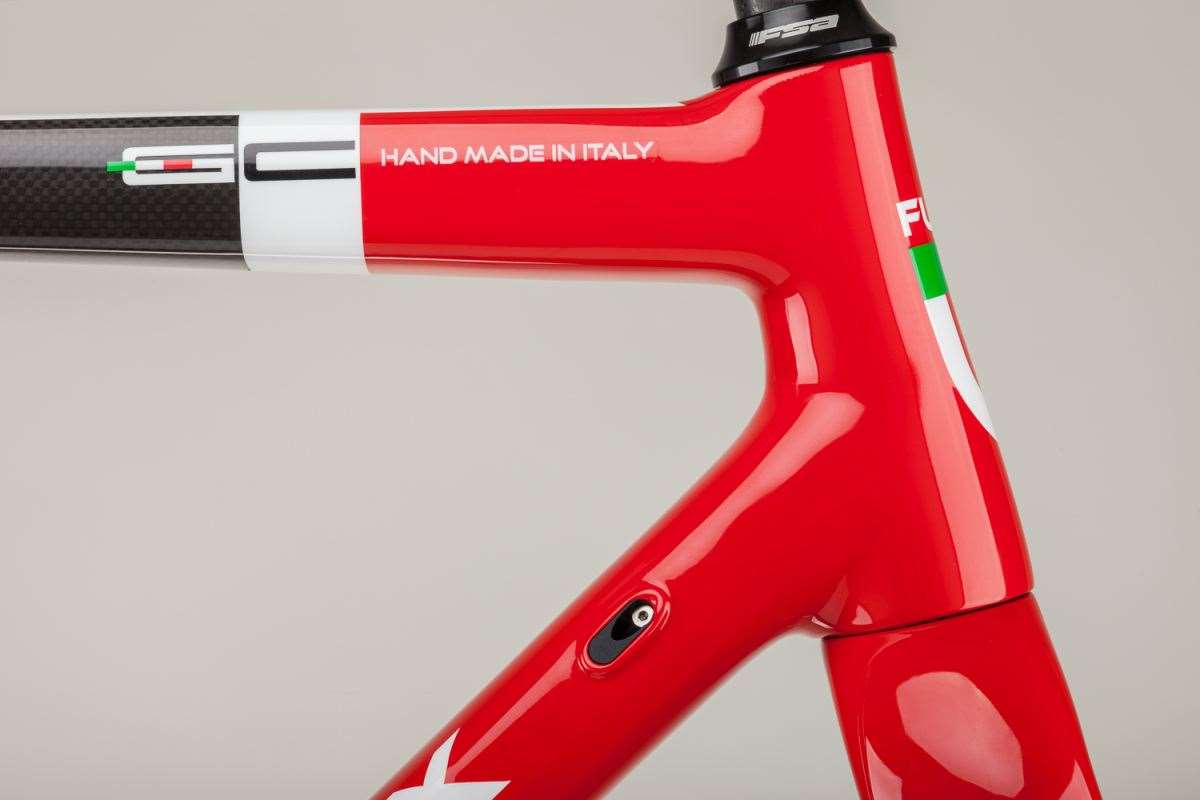

  • Cable routing: Internal.
  • Bottom bracket: PressFit BB92.
  • Groupset compatibility: X1 and X2 compatible, Shimano Di2 / Campagnolo EPS compatible.
  • Brakes: Hydraulic disc brakes, flat mount.
  • Hangers: Aluminium interchangeable rear hangers.
  • Rear thru-axle: 142x12mm.
  • Seatpost diameter: 27.2 mm.
  • Tire clearance: 700c x 41 mm / 650b x 50 mm.

Available in six sizes from XS (505mm top tube) to XXL (610mm top tube). Read more about the Gravel C here.

Full Dynamix Bicycles

full dynamix carbon gravel bike
