Tailfin Cycling S One & X One Trunk Rack & Pannier Rack Review

“Tailfin is a design company that engineers innovative, high-performance products to allow cyclists to create their own incredible adventures. As life-long cyclists, we have a keen understanding of the unique demands and challenges of cycling. As engineers and designers, we have the skills and the knowledge to create solutions to those challenges.” – Tailfin.cc

Tailfin Cycling S One & X One Rack Review

S Series Trunk Rack

“The S Series racks are designed for aerodynamic advantage and work in tandem with the AeroPack Trunk. The S Series is our rack that allows to top mounting only. It’s also quick release and fits any bike.”

tailfin cycling s one x one rack review

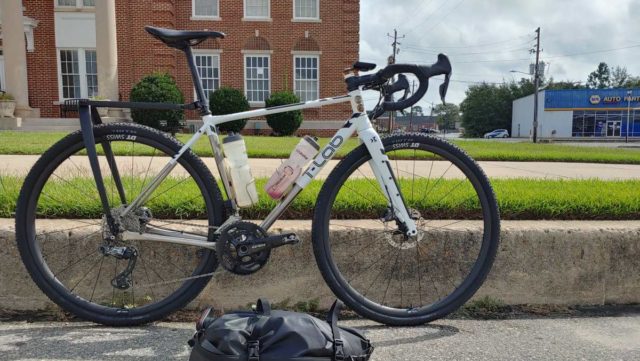

There are two mounting options, Axle + Fast Release Dropouts or Frame Mounting. We chose Axle + Fast Release Dropouts for this review.

tailfin cycling s one x one rack review

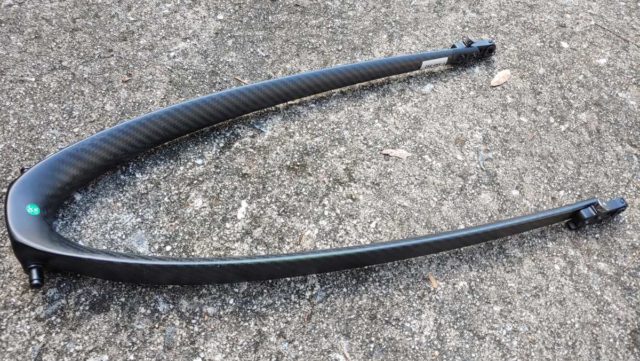

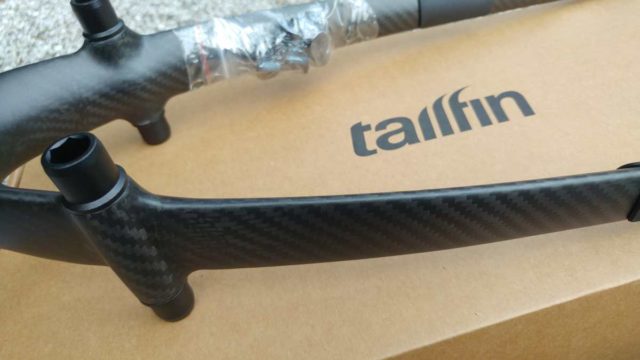

The S One Carbon Arch
tailfin cycling s one x one rack review

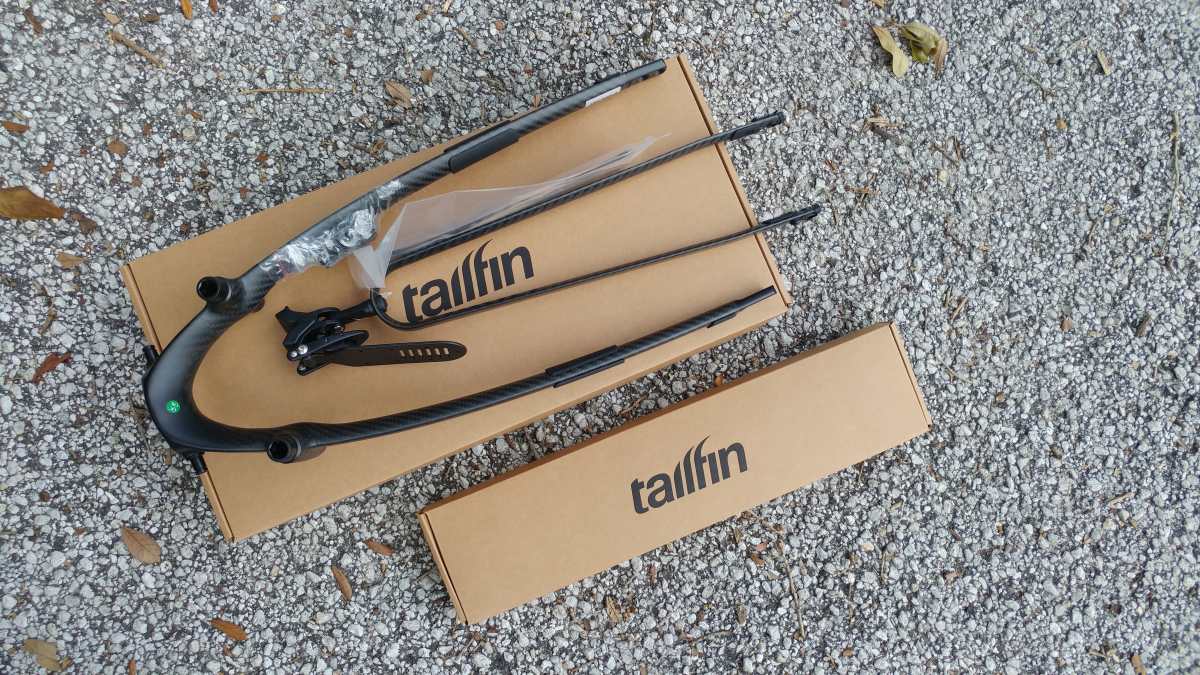

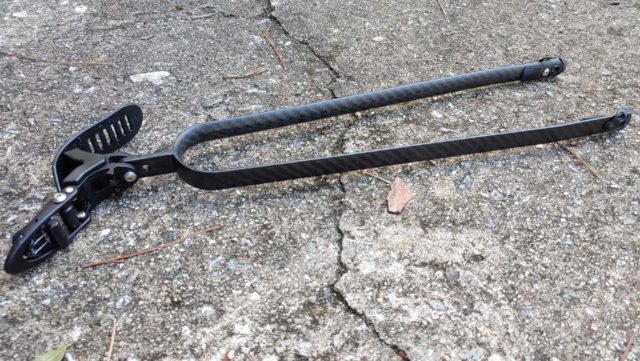

The Carbon Top Stay, which also works with the X One Rack

“Ingenious fast-release dropouts make it simple for you to use one rack for all of your bikes or one bike for everything.”

tailfin cycling s one x one rack review

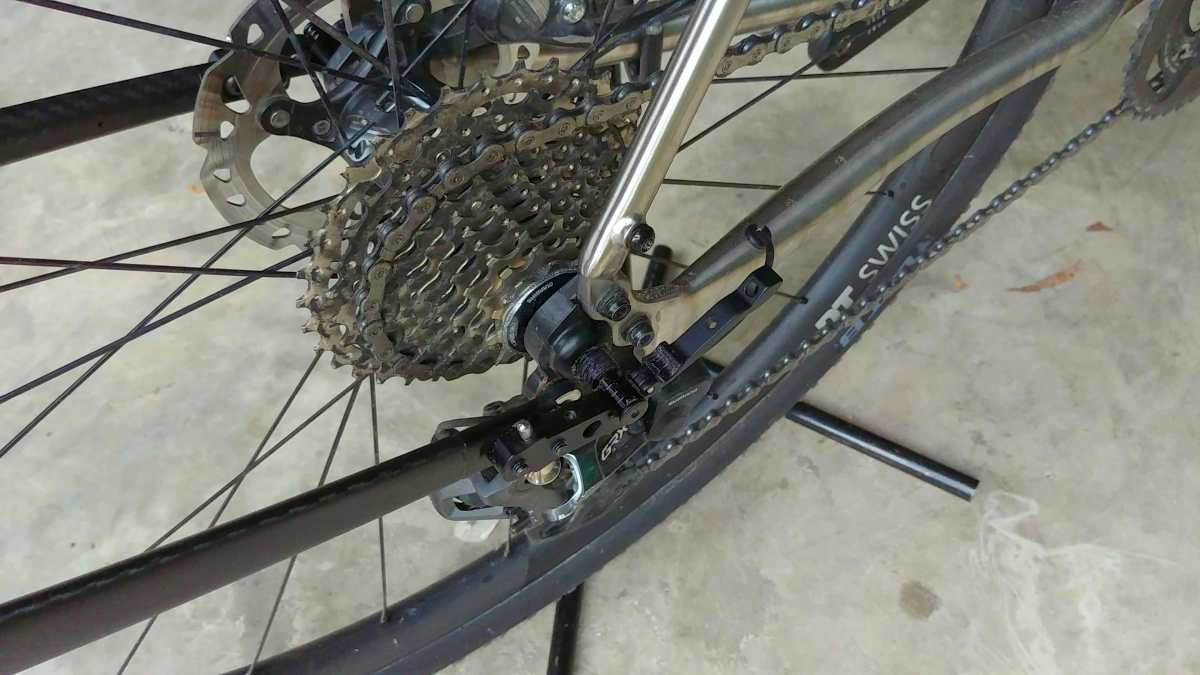

Tailfin Cycling Quick Release

“The Frame Mount Adaptor set allows you to mount directly to your frame mounts but still keep the Fast Release Dropouts for easy on and off rack mounting.” – This also applies to the X Series rack, below.

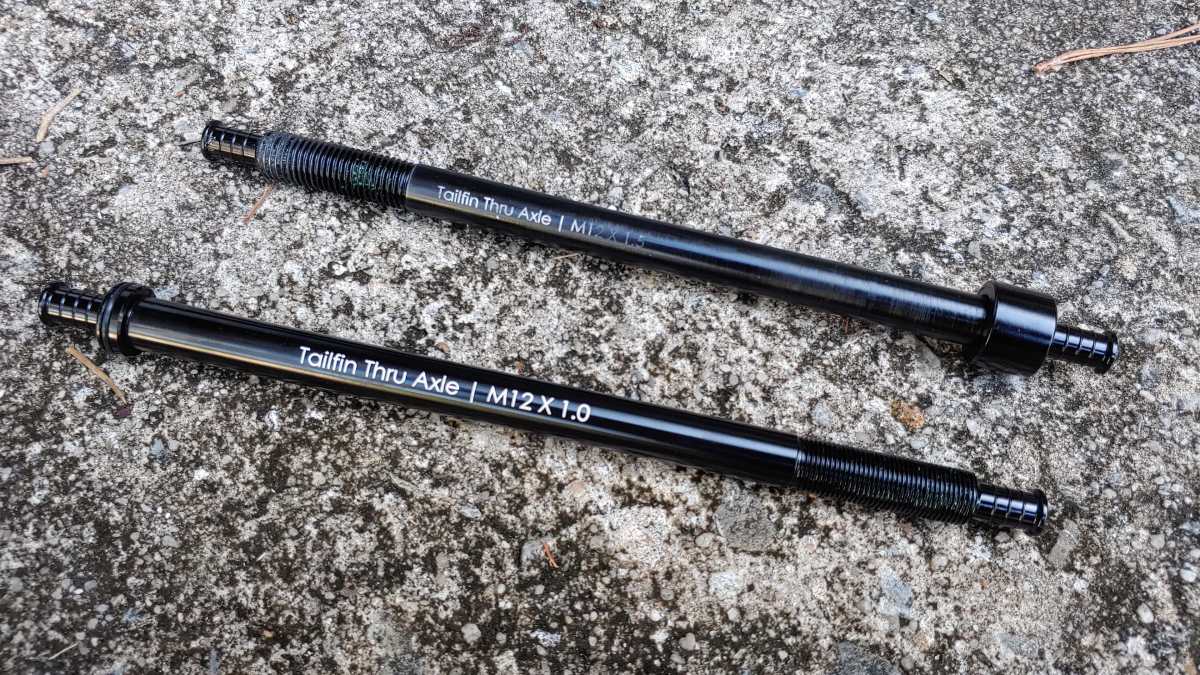

Tailfin Axle Mounting System (TAMS)

Replace your axle with a Tailfin axle to mount the Tailfin rack. Most bicycles use a quick-release axle, however, we also support the new Thru Axle standards (e.g. 12×142, 12×148, E-Thru, Syntace X-12, etc). This system also applies to the X Series rack, below. Tailfin has further information available about TAMS, here.

tailfin cycling s one x one rack review

S Series Specifications

S One = Carbon Arch / Carbon Top Stay, S Two = Carbon Arch / Aluminium Top Stay, S Three = Aluminium Arch / Aluminium Top Stay. We had the S One rack at our disposal for this review. This rack is svelte, good looking, light, and easy to install.

ONE S TWO S THREE
Price (for Axle mounting) US$350.00 Price (for Axle mounting) US$295.00 Price (for Axle mounting) US$195.00
Weight (for Axle mounting) 330g Weight (for Axle mounting) 370g Weight (for Axle mounting) 480g
Price (for Frame mounting) US$265.00 Price (for Frame mounting) US$195.00 Price (for Frame mounting) US$110.00
Weight (for Frame mounting) 270g Weight (for Frame mounting) 310g Weight (for Frame mounting) 420g
Arch Material Carbon Arch Material Carbon Arch Material Alloy
Top Stay Material Carbon Top Stay Material Alloy Top Stay Material Alloy
26″ Maximum Tyre Width 4″ or 100mm 26″ Maximum Tyre Width 4″ or 100mm 26″ Maximum Tyre Width 4″ or 100mm
27.5″ / 650B Maximum Tyre Width 3.5″ or 90mm 27.5″ / 650B Maximum Tyre Width 3.5″ or 90mm 27.5″ / 650B Maximum Tyre Width 3.5″ or 90mm
29″ / 700C Maximum Tyre Width 3″ or 75mm 29″ / 700C Maximum Tyre Width 3″ or 75mm 29″ / 700C Maximum Tyre Width 3″ or 75mm
Maximum Side Load N/A Maximum Side Load N/A Maximum Side Load N/A
Maximum Top Load 9kg Maximum Top Load 9kg Maximum Top Load 9kg
Top Bag Compatibility AeroPack Trunk SX Top Bag Compatibility AeroPack Trunk SX Top Bag Compatibility AeroPack Trunk SX
Side Bag Compatibility None Side Bag Compatibility None Side Bag Compatibility Triple Cage Mounts
Lower Mounting, Axle or Frame Lower Mounting Axle or Frame Lower Mounting Axle or Frame
Upper Mounting Any seatpost – inc. Aero Upper Mounting Any seatpost – inc. Aero Upper Mounting Any seatpost – inc. Aero
Fitting Time Around 10 seconds Fitting Time Around 10 seconds Fitting Time Around 10 seconds
Security Anti-theft screws included Security Anti-theft screws included Security Anti-theft screws included
Dropper Compatible Yes Dropper Compatible Yes Dropper Compatible Yes
Carbon Friendly Yes Carbon Friendly Yes Carbon Friendly Yes
Triple Cage Mounts No Triple Cage Mounts No Triple Cage Mounts Yes, Max load per side 4.5kg

AeroPack Trunk Top Bag

“The accompanying AeroPack Trunk is a 20L roll-top bag that attaches to any S or X Series rack in a matter of seconds.”

tailfin cycling s one x one rack review

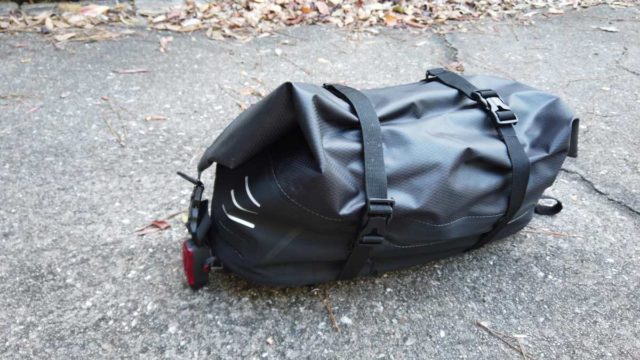

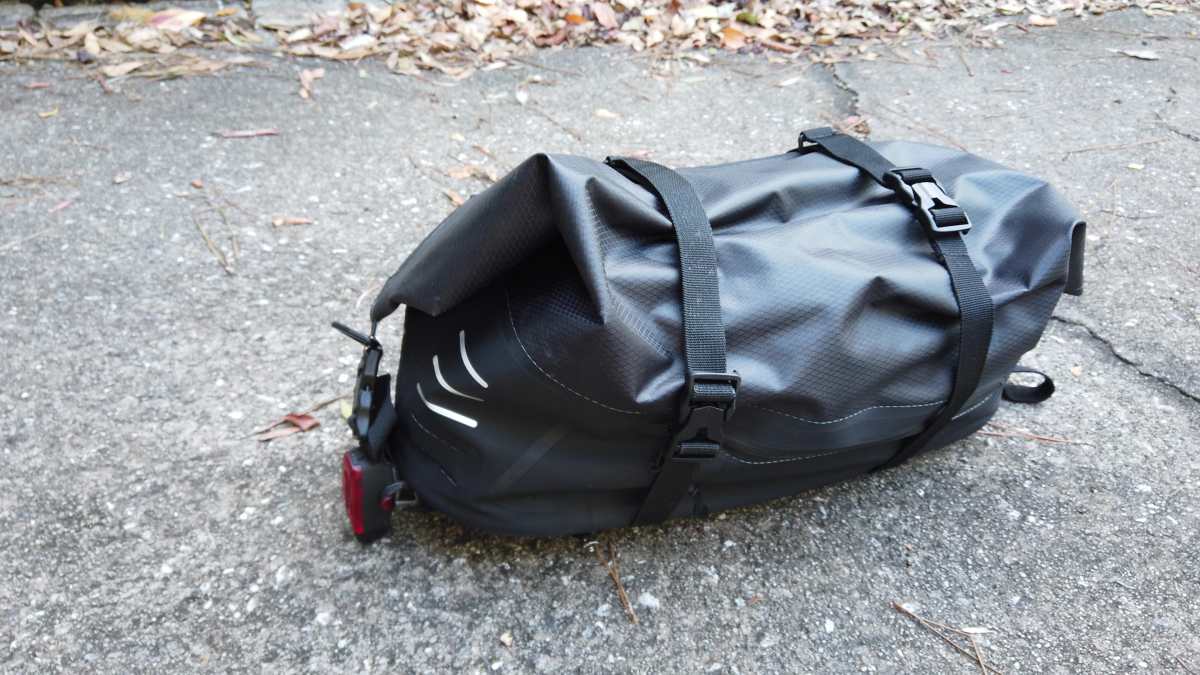

Loaded with gear & optional Taillight Mount

“The AeroPack Trunk is constructed of a high-frequency welded, fully-waterproof, high-performance laminate skin.”

tailfin cycling s one x one rack review

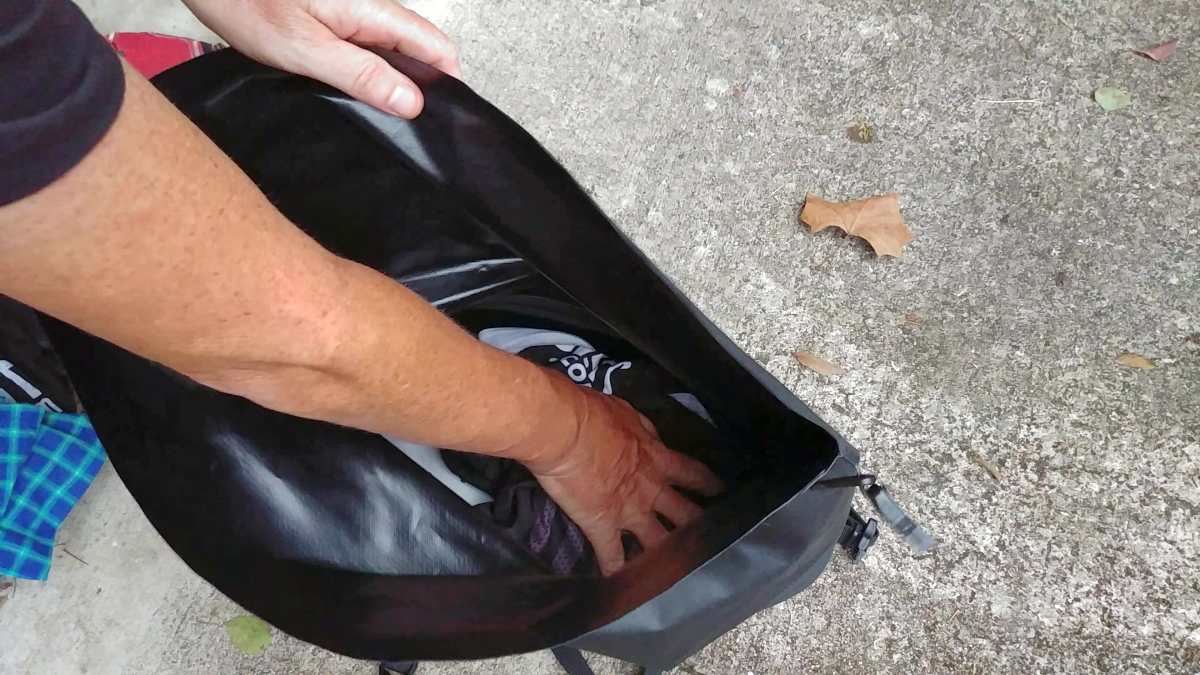

Loading a ton of gear!

“The Trunk SX attaches to the X or S Series rack using a CNC-machined aluminium 6061-T6 alloy, together with stainless steel pins, to create an incredibly strong and rattle-free connection.” – See the review video above for more details.

tailfin cycling s one x one rack review

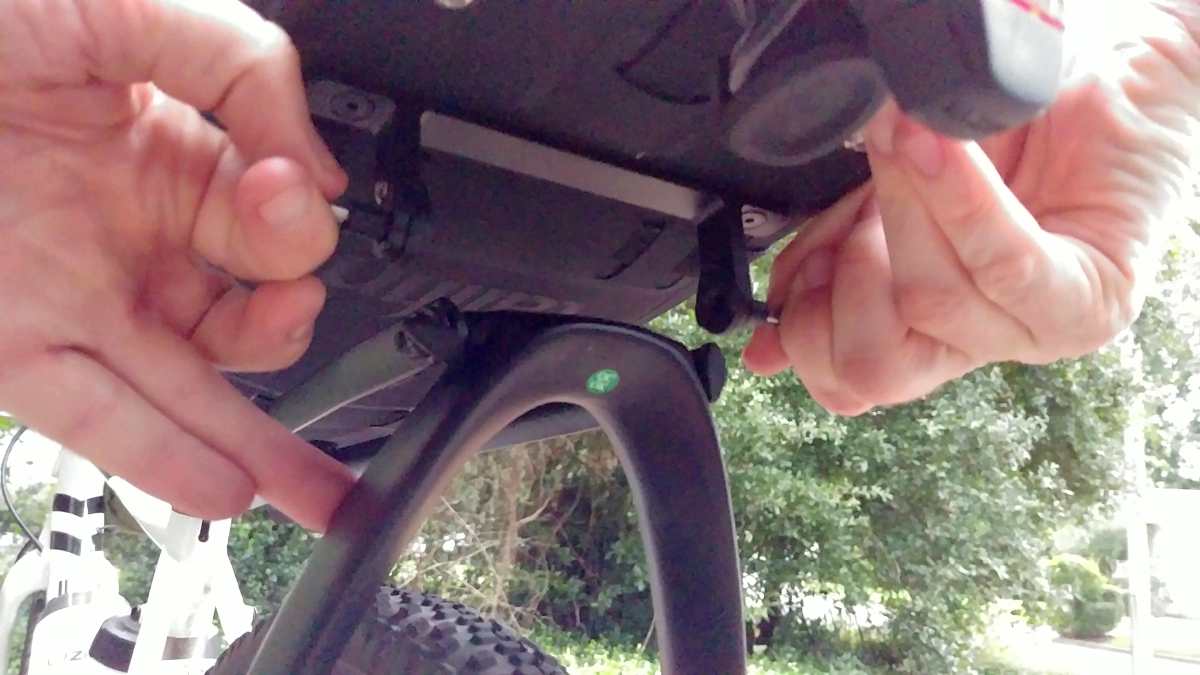

Attaching the Trunk Bag to the S One Rack

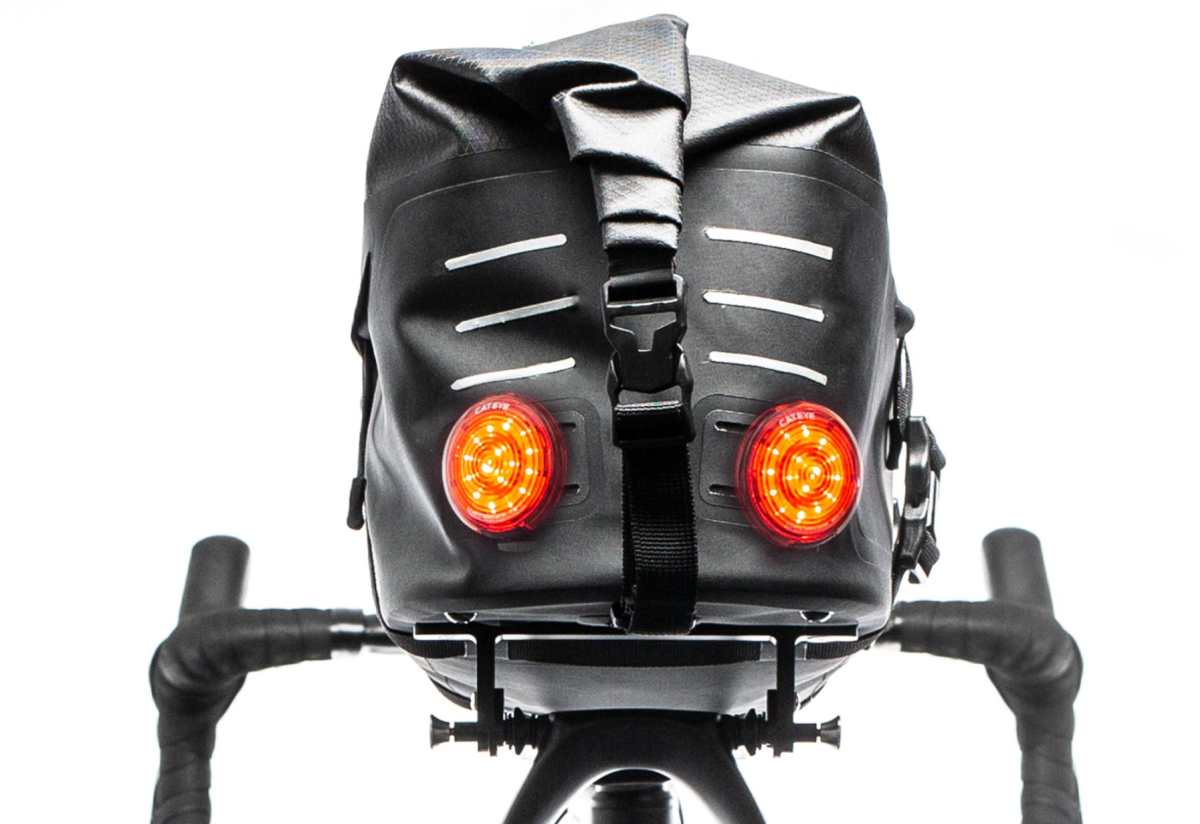

“Use the twin rear light mounts to be seen and stay safe, while reflective strips provide additional visibility.” Additionally, an optional mount is available to use your seatpost-mount style taillight. This mount is featured in the video review above.

tailfin cycling s one x one rack review
Image by Tailfin Cycling

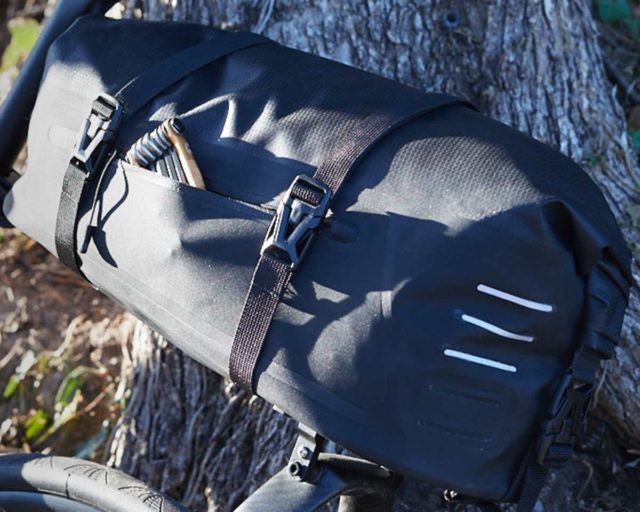

Stash Pocket – “Keep your most-needed items on hand in a zipped outer pocket.”

tailfin cycling s one x one rack review
Image by Tailfin Cycling

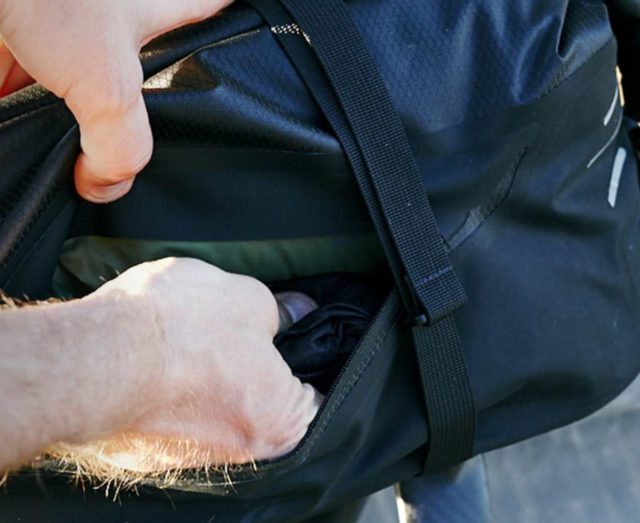

“One of the challenges with any roll top bag is the speed with which you can enter the main body of the bag. The Direct Access Pocket allows you to get into the main body of the bag without opening the roll top.”

tailfin cycling s one x one rack review
Image by Tailfin Cycling
AeroPack Trunk
Price US$225.00
Volume 20 litres
Weight 430g*
Seam Type High Frequency Welded
Fabric Material Nylon & Hypalon Laminate
Max Weight 9kg / 20lbs
Max Laptop Size 13″
Fitting Time 10 seconds or less

X Series Pannier Rack

“The X Series is our do-it-all rack designed to work with the AeroPack Trunk and Side Bags. The rigid wishbone-shaped carbon or alloy frame offers exceptional agility, with no sway or rattle.”

tailfin cycling s one x one rack review

“The X Series is our do-it-all rack. It combines the best of both worlds: side and top-mounted bags. It’s also quick release and fits any bike.”

tailfin cycling s one x one rack review

There are two pannier options for this rack, SL22 Super Light Pannier Bag and UD22 Ultra Durable Pannier Bag. The UD22 was featured in the review above.

X Series Specifications

X ONE X TWO X THREE
Price (for Axle mounting) US $420.00 Price (for Axle mounting) US$350.00 Price (for Axle mounting) US$250.00
Weight (for Axle mounting) 390g Weight (for Axle mounting) 430g Weight (for Axle mounting) 540g
Price (for Frame mounting) US$335.00 Price (for Frame mounting) US$265.00 Price (for Frame mounting) US$170.00
Weight (for Frame mounting) 330g Weight (for Frame mounting) 370g Weight (for Frame mounting) 480g
Arch Material Carbon Arch Material Carbon Arch Material Alloy
Top Stay Material Carbon Top Stay Material Alloy Top Stay Material Alloy
26″ Maximum Tyre Width 4″ or 100mm 26″ Maximum Tyre Width 4″ or 100mm 26″ Maximum Tyre Width 4″ or 100mm
27.5″ / 650B Maximum Tyre Width 3.5″ or 90mm 27.5″ / 650B Maximum Tyre Width 3.5″ or 90mm 27.5″ / 650B Maximum Tyre Width 3.5″ or 90mm
29″ / 700C Maximum Tyre Width 3″ or 75mm 29″ / 700C Maximum Tyre Width 3″ or 75mm 29″ / 700C Maximum Tyre Width 3″ or 75mm
Maximum Side Load 9kg per side Maximum Side Load 9kg per side Maximum Side Load 9kg per side
Maximum Top Load 9kg Maximum Top Load 9kg Maximum Top Load 9kg
Top Bag Compatibility AeroPack Trunk SX Top Bag Compatibility AeroPack Trunk SX Top Bag Compatibility AeroPack Trunk SX
Side Bag Compatibility 2x SL or UD bags Side Bag Compatibility 2x SL or UD bags Side Bag Compatibility 2x SL or UD bags
Lower Mounting Axle or Frame Lower Mounting Axle or Frame Lower Mounting Axle or Frame
Upper Mounting Any seatpost – inc. Aero Upper Mounting Any seatpost – inc. Aero Upper Mounting Any seatpost – inc. Aero
Fitting Time Around 10 seconds Fitting Time Around 10 seconds Fitting Time Around 10 seconds
Security Anti-theft screws included Security Anti-theft screws included Security Anti-theft screws included
Dropper Compatible Yes Dropper Compatible Yes Dropper Compatible Yes
Carbon Friendly Yes Carbon Friendly Yes Carbon Friendly Yes

SL22 Super Light Pannier Bag

“The lightest side bag in the range. The featherlight construction of the Super Light (SL) bag means you can carry your belongings faster than ever before. The SL features a rigid, internal backbone that holds your belongings secure in all conditions.”

tailfin cycling s one x one rack review
Image by Tailfin Cycling

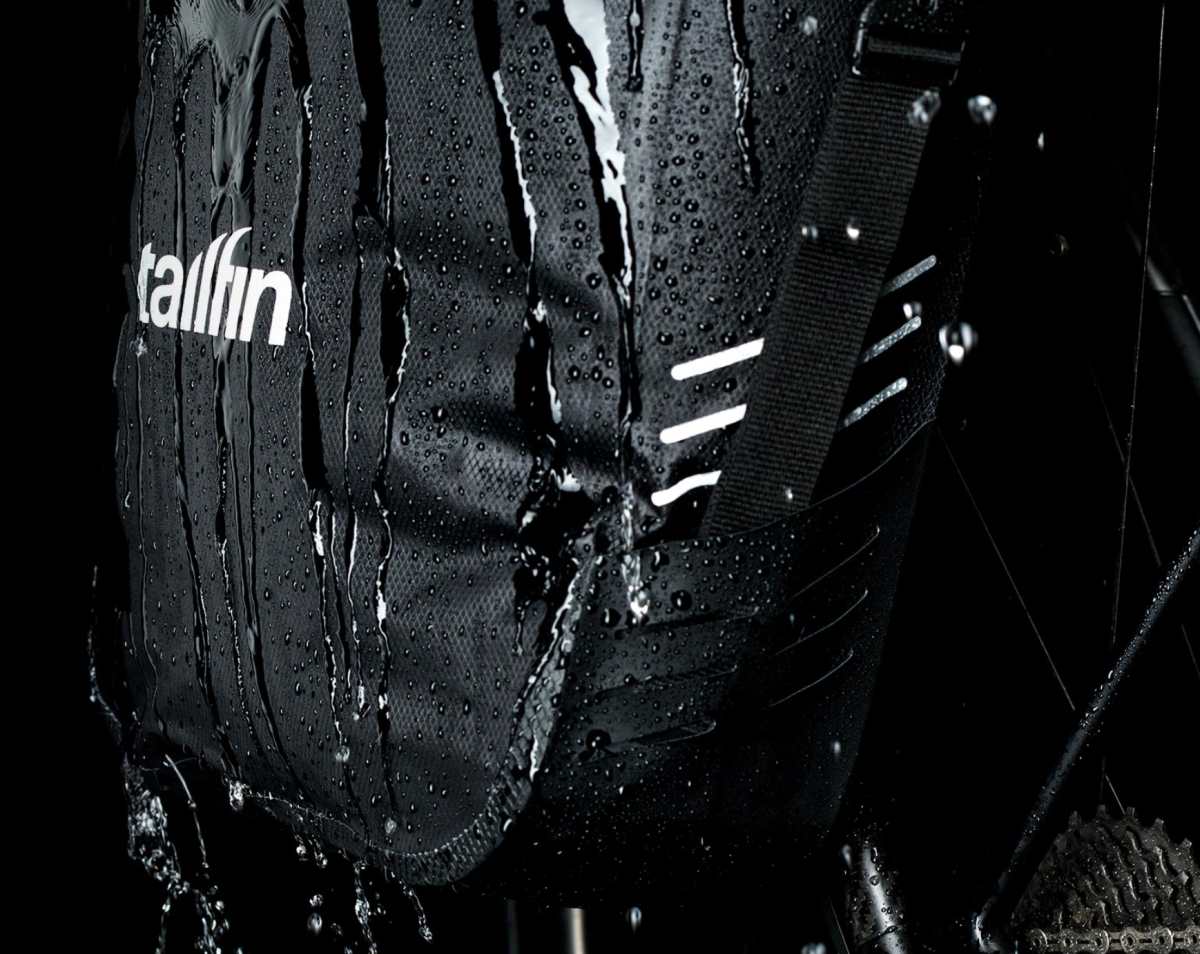

Water Proof – “Featuring high frequency welded seams and a roll-top design, the SL offers total protection from the elements without compromising on weight.”

tailfin cycling s one x one rack review
Image by Tailfin Cycling

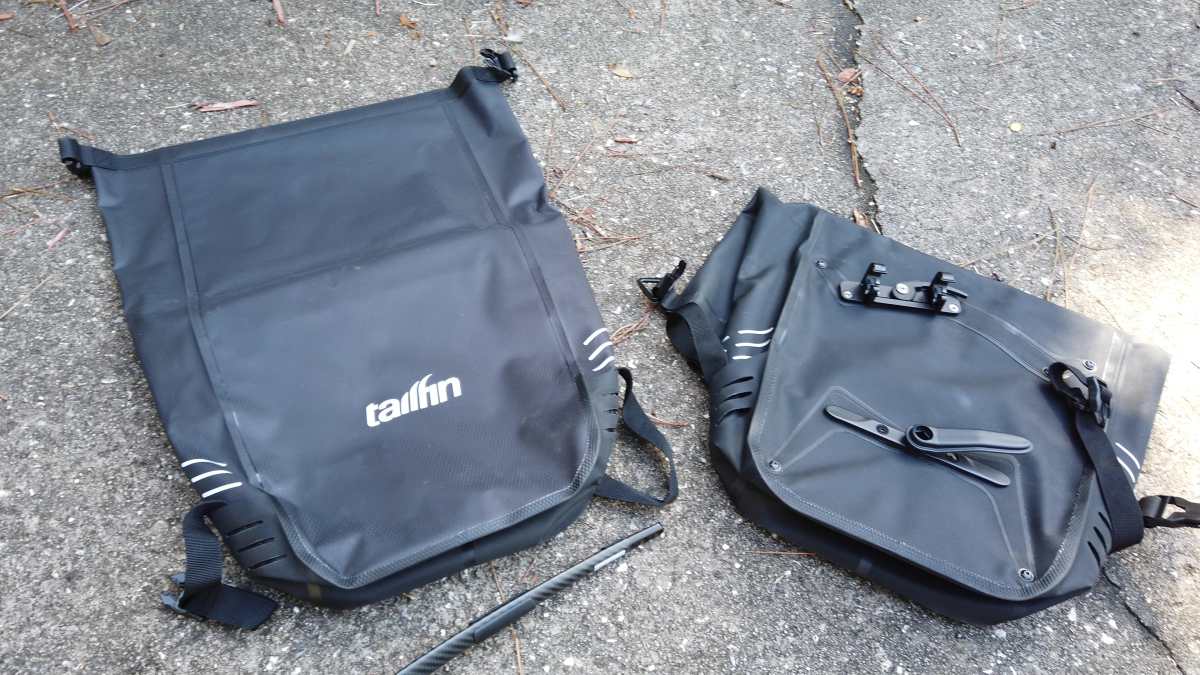

UD22 Ultra Durable Pannier Bag (what we reviewed)

“Constructed from a robust Hypalon rubber laminate, the Ultra Durable (UD) is designed for those adventures where you need absolute faith in your equipment. The UD features a rigid, internal backbone that holds your belongings secure, keeping your ride smooth when the road is rough – or when there is no road at all.”

tailfin cycling s one x one rack review

Water Proof – “Featuring high frequency welded seams and a roll-top design, the UD offers total protection from the elements, however extreme the conditions.”

tailfin cycling s one x one rack review

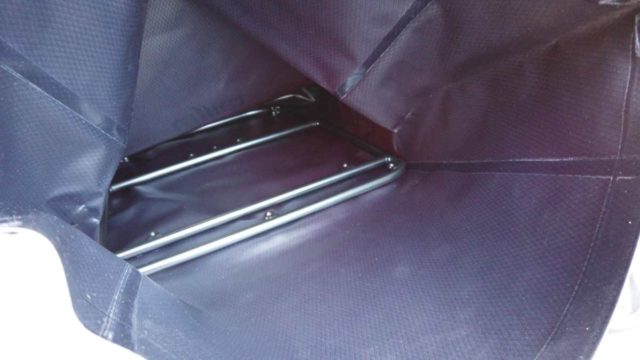

Internal backbone
22l Super Light 22l Ultra Durable
Price US$140.00 Price US$155.00
Weight 600g* Weight 800g*
Maximum Load 9kg Maximum Load 9kg
Size 22 litres / 1350 cu. inches Size 22 litres / 1350 cu. inches
Purpose Road Purpose Road / Gravel
Seam Type High Frequency Welded Seam Type High Frequency Welded
Material Ripstop Nylon & Hypalon Material Ripstop Nylon & Hypalon
Dimensions H x W x D 600 x 315 x 160mm / 23.6 x 12.5 x 6.3″ Dimensions H x W x D 600 x 315 x 160mm / 23.6 x 12.5 x 6.3″
Rack Connection Over center alloy clamp Rack Connection Over center alloy clamp
Maximum laptop size 17″ Maximum laptop size 17″
Fitting time 5-10 seconds Fitting time 5-10 seconds

More information at Tailfin Cycling, including Installation Videos
